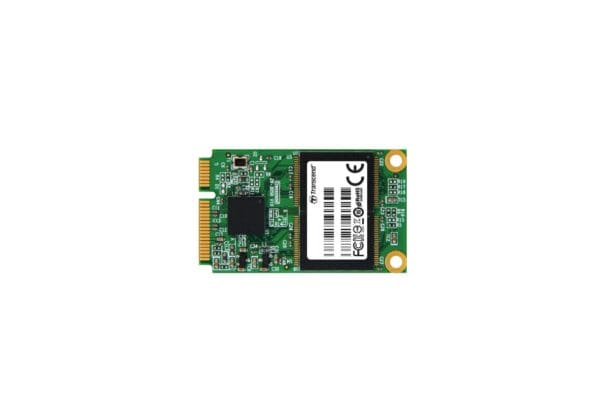

TS1TMSA370 Transcend MSA370 solid state drive 1TB SATA 6Gb/s
TS1TMSA370 Overview
Supporting the next-generation Serial ATA interface and built around a powerful controller, Transcend’s SATA III 6Gb/s mSATA SSD 370 delivers blazing-fast performance and long-term reliability. The compact mSATA form factor makes it perfect for use in space-restricted portable devices such as Ultrabooks, tablet PCs, and slim servers.
$623.00
Shipping calculated at checkout.
TS1TMSA370 Technical Specifications
Transcend MSA370 solid state drive 1TB SATA 6Gb/s
| Brand | Transcend |
|---|---|
| Product Line | Transcend |
| Model | MSA370 |
| Packaged Quantity | :1 |
Storage
| Type | Solid state drive |
|---|
Hard Drive
| Hard Drive Type | Internal hard drive |
|---|---|
| Form Factor | mSATA |
| Form Factor (metric) | mSATA |
| Form Factor (Short) | mSATA |
| Form Factor (Short) (metric) | mSATA |
| Storage Interface | Serial ATA-600 |
| Interface | Serial ATA-600 |
| Capacity | :1 TB |
| NAND Flash Memory Type | Multi-level cell (MLC) |
| Data Transfer Rate | :600 MBps |
| Internal Data Rate | :570 MBps |
| Internal Data Rate (Write) | :470 MBps |
| Maximum 4KB Random Read | :70000 IOPS |
| Maximum 4KB Random Write | :75000 IOPS |
| Features | Advanced Garbage Collection, Advanced Power Shield, Bad Block Management, DDR3 DRAM Cache, DevSleep mode, Error Correction Code (ECC), Hardware purge, Intel ISRTsupport, Intelligent Block Management and Wear Leveling, Native Command Queuing (NCQ), Security Command support, Shock-resistant, StaticDataRefresh Technology, Transcend TS6500 controller, TRIM support |
| Compliant Standards | JEDEC MO-300A, S.M.A.R.T. |
Interface Provided
| Interfaces | :1 x SATA 6 Gb/s – 52 pin mini-SATA |
|---|
Bay Required
| Compatible Bay | mSATA |
|---|
Power Consumption
| Power Consumption | :0.475 Watt (idle), 3.85 Watt (active) |
|---|
System Requirements
| OS Required | Linux Kernel 2.6.31 or later, Microsoft Windows Vista / XP / 7 / 8 |
|---|
Miscellaneous
| Mtbf | :1,500,000 Hours |
|---|---|
| Compliant Standards | BSMI, FCC, RoHS |
Dimensions & Weight
| Width | :1.2 inch |
|---|---|
| Depth | :2 inch |
| Height | :0.2 inch |
| Weight | :0.28 ounce |
