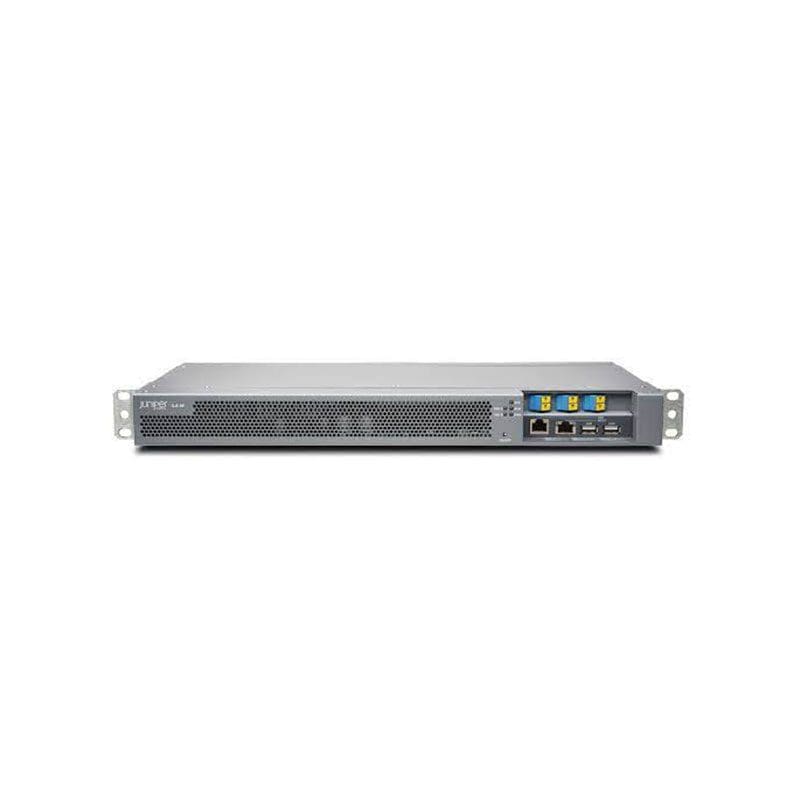

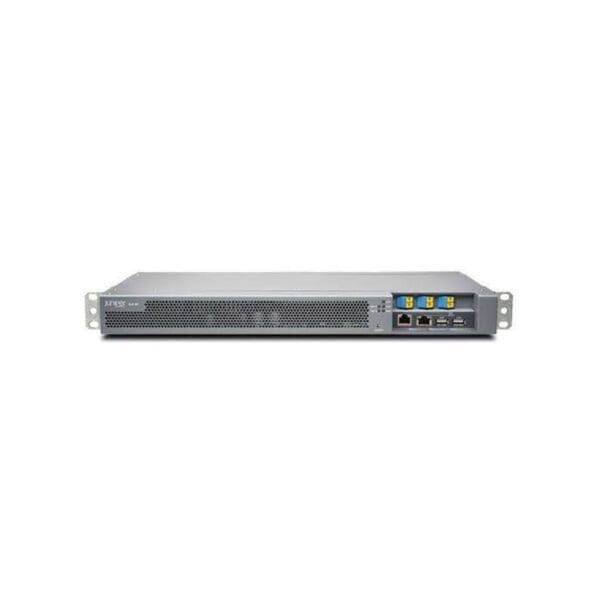

TCX1000-ILA-DC Juniper TCX1000 1U Bi-Directional Inline Amplifier (ILA)
TCX1000-ILA-DC Overview
The Juniper TCX1000 Inline Amplifier (ILA) provides gain-flattened amplification, with the ability to tilt the spectrum for coarse spectrum equalization. Inline amplification provides a low-cost, low noise, high-density amplification solution for sites that do not require access to traffic on the line. The ILA embeds an OSC solution that provides a 100 Mb/s Ethernet channel on a 1511 nm carrier. It is compatible with the TCX1000 Programmable ROADM optical supervisory channel, which provides the ability to access ILA nodes remotely using in-band management, required for ILA sites where DCN access may be limited.
$46,000.00
Shipping calculated at checkout.
TCX1000-ILA-DC Technical Specifications
Juniper TCX1000 1U Bi-Directional Inline Amplifier (ILA)
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks Programmable ROADM |
| Model | TCX1000 |
| Packaged Quantity | :1 |
Networking
| Type | Repeater |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-TX, Fiber optic |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Data Transfer Rate | :100 MBps |
| Optical Wave Length | :1511 nm |
| Features | :10 – 35 dB gain range, Erbium Doped Fiber Amplifier (EDFA), 3 fans |
Interface Provided
| Interfaces | :1 x console – RJ-45 female, 2 x USB – Type A female, 1 x management – RJ-45 female |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Installed Qty | :1 |
| Nominal Voltage | DC -40 -72 V |
| Power Consumption Operational | :75 watt |
Miscellaneous
| Color Category | Gray |
|---|---|
| Height (Rack Units) | :1 |
