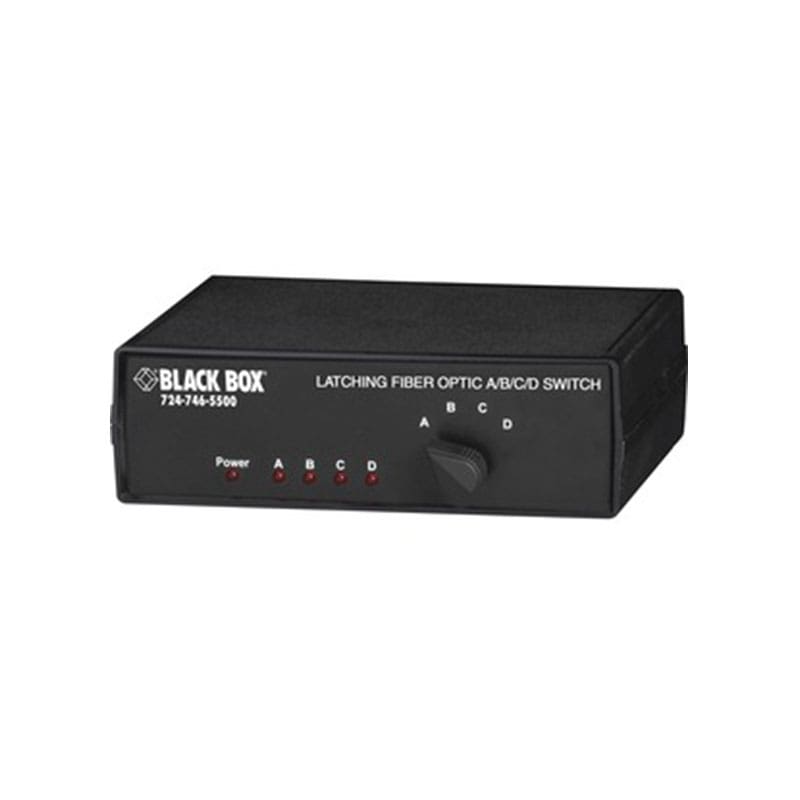

SW1005A Black Box Fiber Optic A B C D Switch, Latching, ST
SW1005A Overview
The switch operates using a unique all-optical micro-mirror, eliminating the complexity and vulnerabilities of electronic fiber switches. The non-latching version falls back to C-to-A position if power is lost. Operate transparently to signal rates formats and wavelengths and don’t require an upgrade when your data protocols change or speeds increase. Work with 62.5-/125-micron multimode. Universal 100–240-VAC power supply. There’s a reason why these types of manual switches continue to be the switches of choice for networking professionals everywhere The tried-and-true optical switches perform as promised year after year.
$1,855.00
Shipping calculated at checkout.
SW1005A Technical Specifications
Black Box Fiber Optic A B C D Switch, Latching, ST
| Manufacturer | Black Box Corporation |
|---|---|
| Manufacturer Part Number | SW1005A |
| Brand Name | Black Box |
| Product Name | Fiber Optic A/B/C/D Desktop Switch – Latching, ST Multimode |
| Product Condition | New |
| Product Type | Fiber Optic Switchbox |
Technical Information
| Switching Type | Manual |
|---|
Power Description
| Frequency | 60 Hz, 50 Hz |
|---|
Physical Characteristics
| Height | 2.5″ |
|---|---|
| Width | 8″ |
| Depth | 6.3″ |
| Weight (Approximate) | 4 lb |
Miscellaneous
Additional Information
| Compatibility | 62.5-/125-micron multimode fiber |
|---|---|
| Crosstalk | -45 dB (typical) per FOTP-42 |
| Mtbf | 100,000 hours or 1,000,000 cycles |
| Sensitivity | 750 to 1440 nanometers |
| Connectors | Fiber ports: (5) pairs of ST |
| Power | (1) 3.5-mm input |
| Certifications & Standards | FCC, CE |
| TAA Compliant | Yes |
