ST800FM0053 Technical Specifications

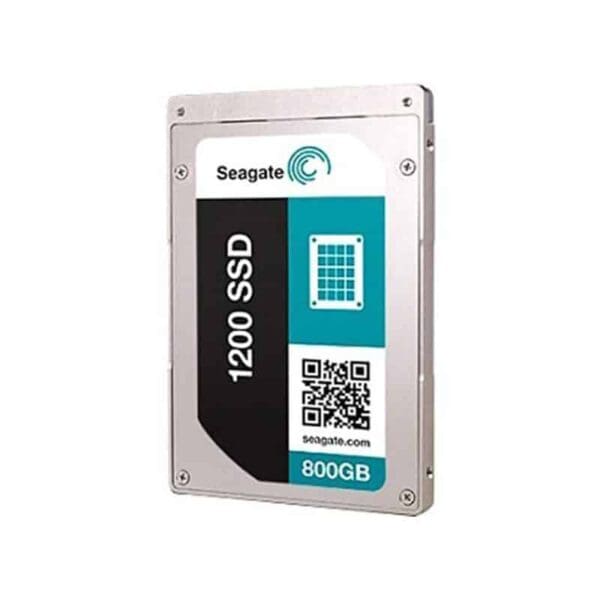

Seagate 1200 Series 800GB MLC SAS 12Gbps (SED)
General Information
| Manufacturer | Seagate |
|---|---|
| Manufacturer model | ST800FM0053 |
| Product line | 1200 ssd |
| Product type | solid state drive (SSD) |
| Product name | 1200 ssd 800gb sas-12gbits mlc 2.5inch solid state drive |
Key Features
| Storage capacity | 800 gb |
|---|---|
| Interface | sas-12gbits |
| Drive dimensions | 2.5 inch |
| Nand flash type | mlc |
| Mtbf | 2000000 hours |
Performance
| Maximum burst transfer rate | 1200 mbps |
|---|---|
| Peak sequential 128kb read data transfer rate (max) | 750 mbps |
| Peak sequential 128kb write data transfer rate (max) | 500 mbps |
| Sustained sequential 128kb read data transfer rate (max) | 750 mbps |
| Sustained sequential 128kb write data transfer rate (max) | 500 mbps |
| Peak 4kb random read command rate | 110000 iops |
| Peak 4kb random write command rate | 30000 iops |
| Sustained 4kb random read command rate | 110000 iops |
| Sustained 4kb random write command rate | 30000 iops |
| Sustainable 4kb random combined iops for 5 year endurance | 60000 |
| Average latency | 0.183 ms |
