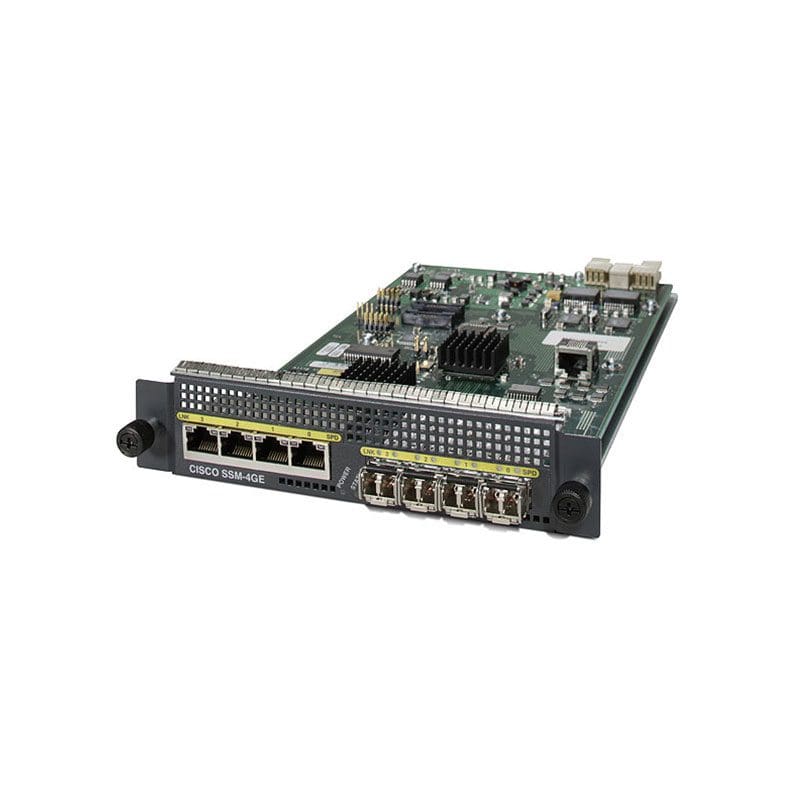

SSM-4GE Technical Specifications
Cisco Security Services Module – expansion module
| Manufacturer | CISCO DS HARDWARE DIRECT |
|---|---|
| Brand | Cisco |
| Product Line | Cisco |
| Model | Security Services Module |
| Packaged Quantity | :1 |
Networking
| Type | Expansion module |
|---|---|
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10Base-T |
| Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet |
| Data Transfer Rate | :1 GBps |
| Status Indicators | Port transmission speed, Status, Link/activity, Link OK |
Ports
| Qty | :4 |
|---|---|
| Type | :10/100/1000 |
Expansion Slots
| Expansion Slots | :4 (total) / 4 (free) x SFP |
|---|
Interface Provided
| Interfaces | :4 x 1000Base-T – RJ-45 |
|---|
Slot Required
| Compatible Slots | :1 x expansion slot |
|---|
Miscellaneous
| Compliant Standards | UL 1950, FCC Part 15, CSA 22.2 No. 950, VCCI Class A ITE |
|---|
Dimensions & Weight
| Width | :6.8 inch |
|---|---|
| Depth | :11 inch |
| Height | :1.5 inch |
| Weight | :1.98 lbs |
