SSG-550M-SH-DC-N-TAA Technical Specifications

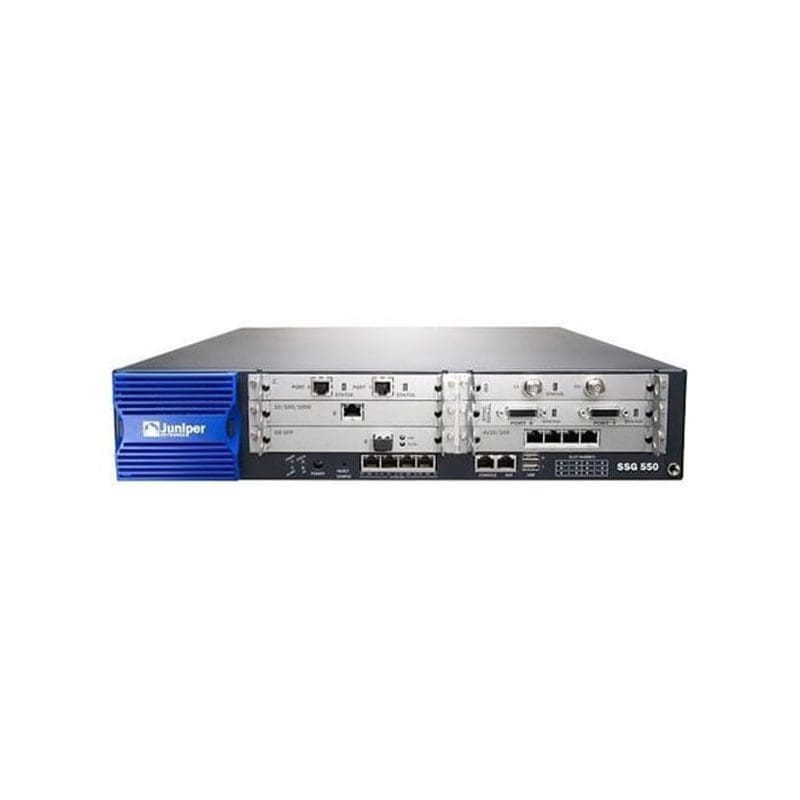

Juniper Networks Secure Services Gateway SSG 550M security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks Secure Services Gateway |
| Model | SSG 550M |
| Packaged Quantity | :1 |
Chassis
| Built-in Devices | LED panel |
|---|
RAM
| Installed Size | :1 GB |
|---|
Optical Storage
| Type | None |
|---|
Performance
| Performance :Firewall throughput (large packets) | 1+ Gbps, 3DES throughput: 500 Mbps, Firewall throughput (IMIX): 1 Gbps |
|---|
Capacity
| Capacity :Security policies | 4000, Static routes: 20000, Concurrent sessions: 128000, Concurrent VPN tunnels: 1000, VPN tunnel interfaces: 300, Connection / user qty: unlimited, Security zones: 60, Authenticated users (internal database): 1500 |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | HDLC, FRF.16, Fast Ethernet, Frame Relay, FRF.15, Ethernet, PPP, MLPPP, Gigabit Ethernet |
| Routing Protocol | OSPF, RIP-1, RIP-2, PIM-SSM, IGMP, BGP, Static IP routing, PIM-SM, IGMPv2 |
| Network / Transport Protocol | L2TP, PPPoE, IPSec, NetBEUI/NetBIOS |
| Remote Management Protocol | Telnet, SNMP 2, HTTP, HTTPS, SNMP |
| Status Indicators | Status, Transmit, Link/activity, Alarm, Receive, Port status, Power |
| Features | DDos attack prevention, High Availability, DoS attack prevention, 168-bit encryption, VLAN support, Firmware upgradable, Quality of Service (QoS), URL filtering, DiffServ support, VPN support, Modular design, PAT support, Syslog support, Routing, DHCP support, LDAP support, NAT support, 56-bit encryption, Transparency, Firewall protection |
| Compliant Standards | IEEE 802.1x, X.509 |
IP Telephony
| VoIP | Yes |
|---|---|
| VoIP Protocols | SIP, SCCP, MGCP, H.323 |
Expansion Slots
| Expansion Slots | :6 (total) / 6 (free) x expansion slot, 4 |
|---|
Interface Provided
| Interfaces | :1 x management – RJ-45, 4 x 1000Base-TX, 1 x management |
|---|
OS Provided
| Type | ScreenOS |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Power Provided | :420 watt |
| Nominal Voltage | DC -48/-60 V |
Miscellaneous
| TAA Compliant | Yes |
|---|---|
| Height (Rack Units) | :2 |
| Encryption Algorithm | RSA, AES, MD5, IKE, Triple DES, DES, SHA-1, PKI |
| Authentication Method | Secure Shell v.2 (SSH2), RADIUS, X.509 certificates, LDAP, SecurID |
| Compliant Standards | cUL, CB, CSA, C-Tick, FCC Class B certified, BSMI, NEBS level 3, UL, VCCI Class A ITE |
Dimensions & Weight
| Width | :17.4 inch |
|---|---|
| Depth | :21.1 inch |
| Height | :3.4 inch |
| Weight | :25.57 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :122 degree Fahrenheit |
| Humidity Range Operating | :10 – 90% |
