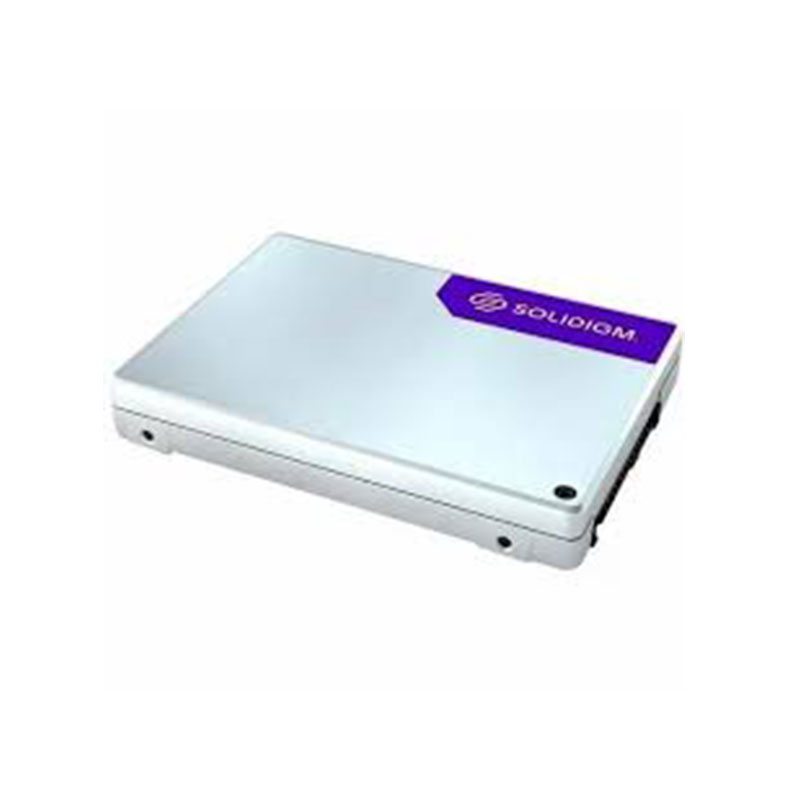

SSDPF2NV307TZ1Z Solidigm 30.72 TB PCIE 2.5-Inch Solid State Drive
SSDPF2NV307TZ1Z Overview
The Solidigm SSDPF2NV307TZ1Z is a 30.72 TB high‑capacity enterprise NVMe solid‑state drive from the D5‑P5316 family, engineered for modern data centers and server storage tiers that demand massive storage density with strong performance and efficiency. It uses a PCIe 4.0 ×4 NVMe interface in a 2.5‑inch U.2 (15 mm) form factor, making it compatible with standard enterprise server bays and storage arrays that support U.2 SSDs. The advanced 144‑layer 3D QLC NAND provides extremely high capacity and cost‑effective storage efficiency, allowing large data stores to be consolidated into fewer drives.
$14,499.00
Shipping calculated at checkout.
SSDPF2NV307TZ1Z Technical Specifications
Solidigm D5-P5316 30.72 TB PCIE 4.0X4 2.5-Inch Solid State Drive
| Capacity | 30.72 TB |
|---|---|
| Form Factor | U.2 2.5″ (15 mm) |
| Interface | PCIe 4.0 x4, NVMe |
| NAND Flash | 144‑Layer QLC 3D NAND |
| Drive Type | Internal NVMe SSD, enterprise-grade |
| Performance | (Speed) |
| Max Sequential Read | ~7000 MB/s |
| Max Sequential Write | ~3600 MB/s |
| Random Read (4KB) | ~800,000 IOPS |
| Random Write (4KB) | ~510 MB/s |
Power & Endurance
| Active Power | ~25 W |
|---|---|
| Idle Power | ~5 W |
| Endurance | ~0.4 DWPD |
Reliability & Durability
| Mtbf | ~2,000,000 hours |
|---|---|
| Uncorrectable Bit Error Rate (UBER) | <1 per 10¹⁷ bits |
Environmental / Physical
| Operating Temperature | 0 °C – 70 °C |
|---|---|
| Shock Tolerance | ~1000 G |
| Vibration | ~2.17 GRMS (operating) / ~3.13 GRMS (non-operating) |
| Usage |
|
