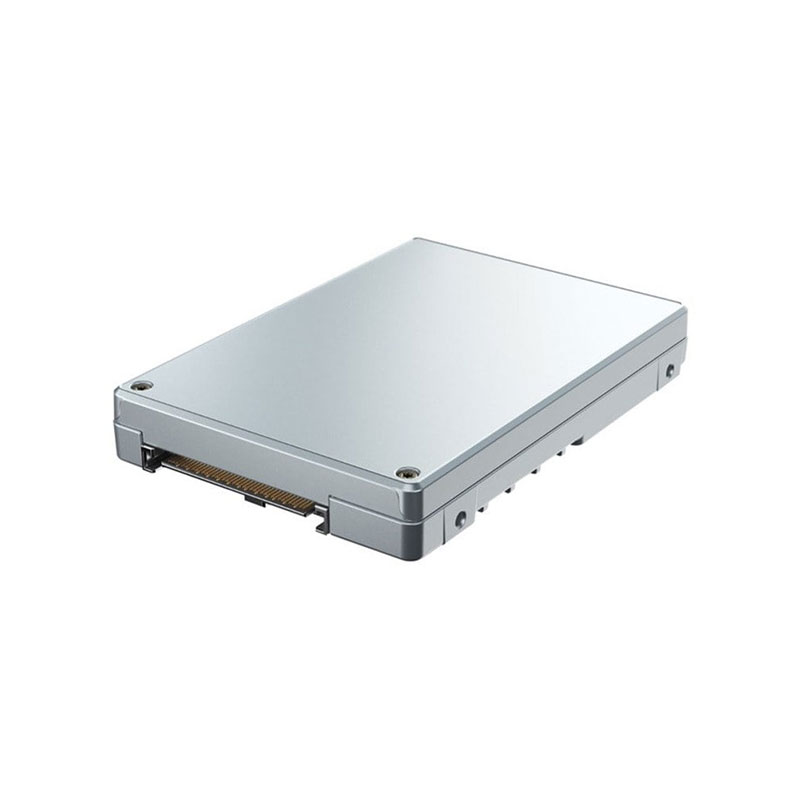

SSDPF2KX076T1N1 Technical Specifications
Solidigm 7.68 Terabytes (TB) Peripheral Component Interconnect Express (PCI-E) Non-Volatile Memory Express (NVMe) 4.0 x4 Solid State Drive
| Manufacturer | Solidigm |
|---|---|
| Model Number or SKU# | SSDPF2KX076T1N1 |
| Product Type | Solid State Drive |
| Storage Capacity | PCI-Express |
| Technical Information for 7.68TB Solid State Drive | |
| Form Factor | U.2 15mm |
| Interface Type | PCI-E 4.0 X4, NVMe |
| Lithography | 144l TLC 3d NAND |
| Shock | 1000 G/0.5 Msec |
| Mtbf | 2000000 Hours |
| Performance | of PCI-E SSD |
| Sequential Bandwidth 100% Read (Up To) | 7100 MBPS |
| Sequential Bandwidth 100% Write (up To) | 4200 MBPS |
| Random Read (100% Span) | 1100000 IOPS (4k Blocks) |
| Random Write (100% Span) | 220000 IOPS (4k Blocks) |
Advanced Technologies
| Enhanced Power Loss Data Protection | Yes |
|---|---|
| Hardware Encryption | Aes 256 Bit |
| Temperature Monitoring And Logging | Yes |
| End-to-end Data Protection | Yes |
