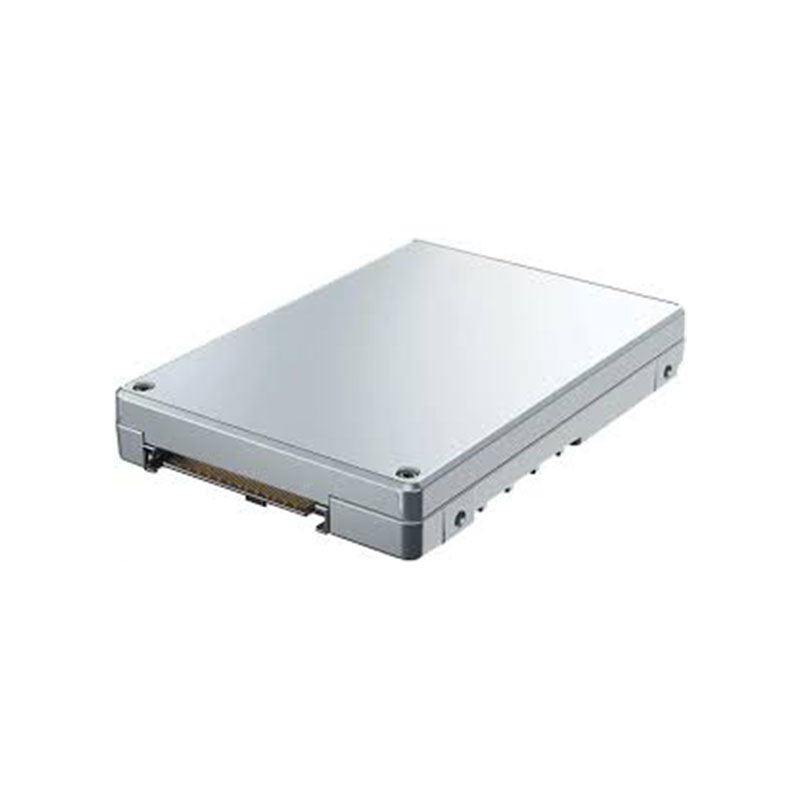

SSDPF2KX038T1N1 Solidigm 3.84TB SSD PCI-Express TLC
SSDPF2KX038T1N1 Overview
The Solidigm SSDPF2KX038T1N1 utilizes the PCI-E interface, which is crucial to its performance. PCI-E, or Peripheral Component Interconnect Express, is a standard for connecting high-speed components to a computer’s motherboard. The “4.0” denotes the version of the PCI-E standard, with each new version doubling the bandwidth of the previous one. The “X4” refers to the number of lanes used by the SSD, with more lanes allowing for faster data transfer rates. This interface is a significant upgrade over earlier versions, offering double the bandwidth of PCI-E 3.0 and ensuring that the Solidigm SSD is not bottlenecked by its connection to the rest of the system.
$2,249.00
Shipping calculated at checkout.
SSDPF2KX038T1N1 Technical Specifications
Solidigm 3.84 Terabytes (TB) Peripheral Component Interconnect Express (PCI-E) 4.0 X4 3D4 Triple Level Cell (TLC) Solid State Drive(SSD)
| Manufacturer | Solidigm |
|---|---|
| Model Number or SKU# | SSDPF2KX038T1N1 |
| Product Type | Solid State Drive |
| Product Name | D7-p5520 Series Solid State Drive. |
Technical Information of 3.84TB SSD
| Storage Capacity | 3.84 Terabytes |
|---|---|
| Interface Type | PCIe 4.0 x4, NVMe |
| Form Factor | U.2, 15mm |
| Lithography | 144-layer TLC 3D NAND |
| Shock Resistance | 1000 G for 0.5 milliseconds |
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
Performance
| Sequential Read Speed (up to) | 6700 MB/s |
|---|---|
| Sequential Write Speed (up to) | 3600 MB/s |
| Random Read (4KB blocks) | 1,000,000 IOPS |
| Random Write (4KB blocks) | 200,000 IOPS |
Advanced Technologies
| Enhanced Power Loss Data Protection | Yes |
|---|---|
| Hardware Encryption | AES 256-bit |
| Temperature Monitoring and Logging | Yes |
| End-to-End Data Protection | Yes |
