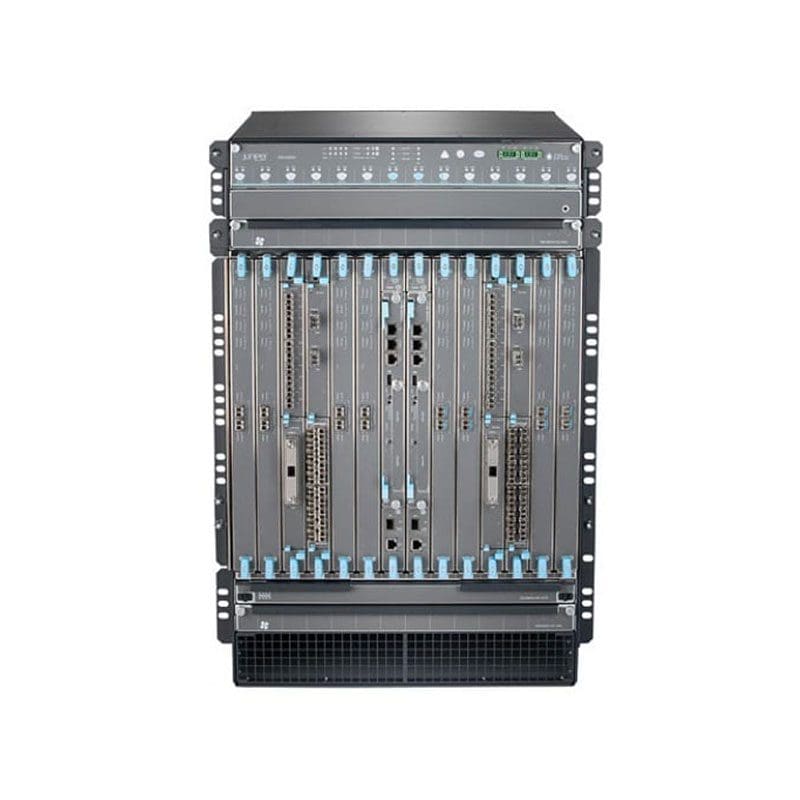

SRX5800E-BASE-AC Juniper Networks SRX 5800 security appliance
SRX5800E-BASE-AC Overview
The SRX 5800 services gateway is the market-leading security solution supporting more than 120 Gbps firewall, 30 Gbps IDP and 350,000 connections per second. Equipped with the full range of security features, SRX 5800 is ideally suited for securing large enterprise centers and co-located data centers. It can also be deployed to secure service provider infrastructures as well as services. The massive scalability and flexibility of the services gateway makes it ideal for continuously consolidating and growing data center requirements, as well as the rapid service deployment requirements by service and managed service providers.
$78,164.00
Shipping calculated at checkout.
SRX5800E-BASE-AC Technical Specifications
Juniper Networks SRX 5800 security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | SRX 5800 |
| Packaged Quantity | :1 |
Chassis
| Built-in Devices | Midplane |
|---|
Processor
| Type | Xeon |
|---|---|
| Installed Qty | :1 |
| Manufacturer | Intel |
| Clock Speed | :1.8 GHZ |
RAM
| Installed Size | :16 GB |
|---|
Flash Memory
| Installed Size | :4 GB, 4 GB |
|---|
Hard Drive
| Type | SSD |
|---|---|
| Capacity | :128 GB |
Optical Storage
| Type | None |
|---|
Performance
| Performance :VPN throughput (IPSec) | 200 Gbps, IPS throughput: 100 Gbps, Firewall throughput: 300 Gbps |
|---|
Capacity
| Capacity :Concurrent sessions | 1000000, New connections per second: 450000 |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Routing Protocol | OSPFv3, IPv4-to-IPv6 Multicast, Policy-based routing (PBR), BGP, OSPF, RIP-2, Bidirectional Forwarding Detection (BFD), ECMP, Static IP routing, RIP-1 |
| Network / Transport Protocol | IPSec, DHCP |
| Remote Management Protocol | CLI, SSH, SNMP 2, HTTPS, HTTP, SNMP 3, Telnet |
| Features | IPSec passthrough, Quality of Service (QoS), Firewall protection, Modular design, DoS attack prevention, IPv6 support, High Availability, DDos attack prevention, 2 fans |
Expansion Slots
| Expansion Slots | :2 (total) / 0 (free) x Switch Control Board (SCB), 12 (total) / 12 (free) x expansion slot |
|---|
OS Provided
| Type | JUNOS |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
| Installed Qty | :2 |
| Max Supported Qty | :4 |
| Nominal Voltage | AC 200/240 V |
Miscellaneous
| Height (Rack Units) | :16 |
|---|---|
| Encryption Algorithm | SHA-1, DH, IKE, AES, MD5, DES, PKI |
| Authentication Method | RADIUS, X.509 certificates |
| Compliant Standards | NEBS level 3, EMC |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :23.5 inch |
| Height | :27.8 inch |
