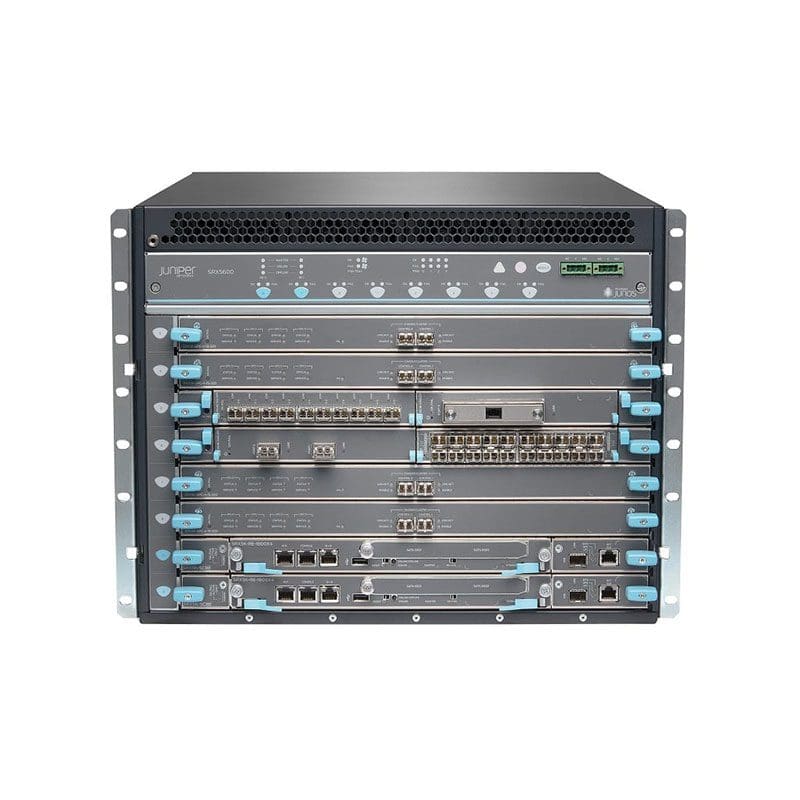

SRX5600BASE-HC-AC Juniper Networks SRX 5600 security appliance
SRX5600BASE-HC-AC Overview
Based on the dynamic services architecture, the SRX Series provides unrivaled scalability. The SPCs are designed to support a wide range of services enabling future support of capabilities without the need for service-specific hardware. Using SPCs on all services ensures that there are no idle resources based on specific services being used – maximizing the utilization of equipped hardware.
$53,195.00
Shipping calculated at checkout.
SRX5600BASE-HC-AC Technical Specifications
Juniper Networks SRX 5600 security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | SRX 5600 |
| Packaged Quantity | :1 |
Chassis
| Built-in Devices | Midplane |
|---|
Processor
| Installed Qty | :1 |
|---|---|
| Clock Speed | :1.3 GHZ |
RAM
| Installed Size | :2 GB |
|---|
Performance
| Performance :VPN throughput (256-bit AES+SHA1 IPSec) | 75 Gbps, Firewall throughput (IMIX): 65 Gbps, IPS throughput: 50 Gbps, Firewall throughput: 100 Gbps, 3DES+SHA1 VPN performance (large packets): 75 Gbps, Firewall throughput (64-byte packet size): 20 Mpps |
|---|
Capacity
| Capacity :BGP peers | 2000, Concurrent users: unlimited, Virtual interfaces (VLANs): 4096, RIP instances: 50, Security policies: 80000, BGP instances: 1000, Security zones: 2000, Concurrent sessions: 60000000, Virtual routers: 2000, VPN tunnel interfaces: 15000, New sessions per second: 400000, BGP routes: 1000000, OSPF routes: 1000000, OSPF instances: 400, Maximum logical network members: 32, VPN tunnels (site-to-site): 15000 |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Routing Protocol | OSPFv3, RIP-2, IPv4-to-IPv6 Multicast, BGP, RIP-1, Policy-based routing (PBR), ECMP, Static IP routing, Bidirectional Forwarding Detection (BFD), OSPF, RIPng |
| Network / Transport Protocol | DHCP |
| Remote Management Protocol | HTTPS, CLI, Telnet, SSH, HTTP, SNMP 2 |
| Features | Weighted Random Early Detection (WRED), VPN support, Firmware upgradable, IPv6 support, DHCP relay, Syslog support, Anti-spyware protection, High Availability, PAT support, Link Aggregation Control Protocol (LACP), Anti-malware protection, Firewall protection, NAT support, Weighted Round Robin (WRR) queuing, DiffServ support, DHCP server, Traffic shaping, Class of Service (CoS), Quality of Service (QoS), Traffic Control, IPSec Virtual Private Network (VPN), DDos attack prevention, Intrusion Prevention System (IPS), DoS attack prevention |
Expansion Slots
| Expansion Slots | :5 (total) / 3 (free) x, 5 (total) / 5 (free) x expansion slot |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Installed Qty | :2 |
| Nominal Voltage | AC 120/230 V |
System Requirements
| OS Required | JUNOS |
|---|
Miscellaneous
| Encryption Algorithm | DH, Triple DES, PKI, SHA-1, DES, AES, IKE, MD5 |
|---|---|
| Authentication Method | RADIUS |
| Compliant Standards | NEBS level 3, EMC |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :23.8 inch |
| Height | :14 inch |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% |
