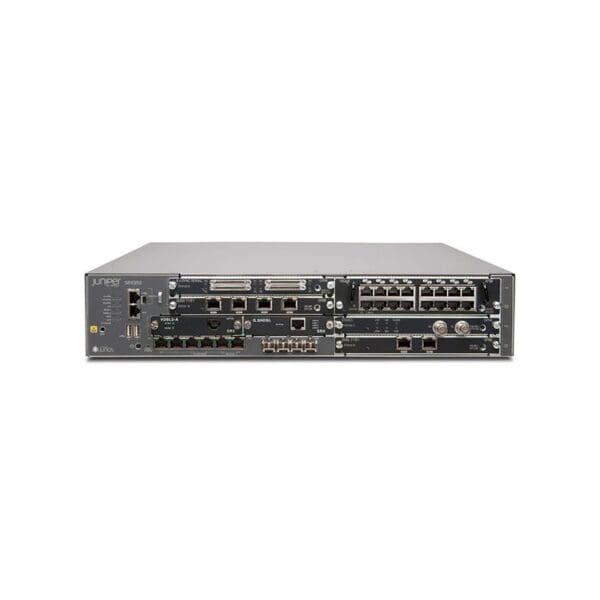

SRX550-645DP-M Juniper SRX550 Services Gateway security appliance
SRX550-645DP-M Overview
The SRX550 services gateway delivers a single, consolidated, advanced branch networking and security platform with ten built-in GbE ports, two mini-PIM slots, and six GPIM or XPIM slots for unmatched modularity and flexibility.
$9,143.00
Shipping calculated at checkout.
SRX550-645DP-M Technical Specifications
Juniper Networks SRX550 Services Gateway security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | SRX550 Services Gateway |
| Packaged Quantity | :1 |
RAM
| Installed Size | :4 GB |
|---|
Flash Memory
| Installed Size | :8 GB, 8 GB |
|---|
Performance
| Performance :Antivirus throughput | 300 Mbps, Connection rate: 27000 connections per second, Firewall throughput (HTTP): 2 Gbps, Routing throughput: 1000000 packets per second, Firewall throughput (large packets): 7 Gbps, VPN throughput (IPSec): 1 Gbps, Firewall throughput (64-byte packet size): 700000 packets per second, Firewall throughput (IMIX): 2 Gbps, IPS throughput: 800 Mbps |
|---|
Capacity
| Capacity :Virtual routers | 128, MLPPP maximum physical interfaces: 12, Concurrent sessions: 375000, BGP instances: 56, Concurrent VPN tunnels: 2000, OSPF instances: 56, Maximum number of remote users: 500, VPN tunnel interfaces: 456, Security policies: 8000, Security zones: 96, Virtual interfaces (VLANs): 3967, IPSec VPN tunnels: 2000, RIP instances: 56, RIP routes: 712000, BGP peers: 192, RIP routes: 32000, BGP routes: 712000, Static routes: 100000, MLFR maximum physical interfaces: 12, OSPF routes: 200000, Maximum number of users: unlimited |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | MLFR, V.35, Gigabit Ethernet, X.21, RS-232, FRF.15, FRF.16, RS-449, Fast Ethernet, HDLC, Frame Relay, PPP, MLPPP, Ethernet, FRF.12 |
| Routing Protocol | IGMPv3, PIM-DM, IS-IS, MPLS, GRE, MLD, MSDP, ECMP, OSPFv3, BGP, IGMPv2, PIM-SM, IGMP, RIP-1, PIM-SSM, RIP-2, VRRP, OSPF, DVMRP, RIPng, Static IP routing |
| Switching Protocol | Frame Relay, Ethernet |
| Network / Transport Protocol | PPPoA, RSVP, IPSec, DHCP, PPPoE |
| Features | Quality of Service (QoS), IGMP snooping, NAT support, Tagged VLAN, Rapid Spanning Tree Protocol (RSTP) support, DiffServ Code Point (DSCP) support, VPN support, DiffServ support, Modular design, J-Flow, Link Fragmentation and Interleaving (LFI), PAT support, IPv4 support, Weighted Random Early Detection (WRED), Syslog support, DHCP server, Multiple Spanning Tree Protocol (MSTP) support, 3G/4G USB Dongle Support, DoS attack prevention, LLDP support, DDos attack prevention, Firewall protection, DHCP relay, IPv6 support, Content filtering |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ad, IEEE 802.1x, IEEE 802.1p |
Expansion Slots
| Expansion Slots | :8 (total) / 8 (free) x expansion slot |
|---|
Interface Provided
| Interfaces | :4 x 1000Base-X – SFP (mini-GBIC), 6 x 1000Base-T – RJ-45, 2 x USB – Type A |
|---|
OS Provided
| Type | JUNOS |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Power Redundancy | Optional |
| Installed Qty | :1 |
| Max Supported Qty | :2 |
| Power Provided | :645 watt |
| Nominal Voltage | DC 43 – 56 V |
| Power Consumption Operational | :85 watt |
Miscellaneous
| Height (Rack Units) | :2 |
|---|---|
| Encryption Algorithm | :256-bit SHA-2, IKEv2, SHA-1, 256-bit SHA, PKI, DES, DH, RSA, 256-bit AES, 128-bit AES, MD5, IKE, Triple DES |
| Authentication Method | SecurID, X.509 certificates, LDAP, XAUTH (RADIUS, LDAP, Active Directory), RADIUS |
| Mtbf | :9.6 years |
| Compliant Standards | ICSA IPSec certified, ICSA Firewall certified, AS/NZS 60950-1, CB, CS-03, FCC Class A certified, EN 300386, UL 60950-1, CISPR 22 Class A, JITC, EN55022 Class A, ICES Class A, EN 60950-1, VCCI Class A, CSA C22.2 No. 60950-1, DOC |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :18.2 inch |
| Height | :3.5 inch |
| Weight | :21.96 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :10 – 90% (non-condensing) |
