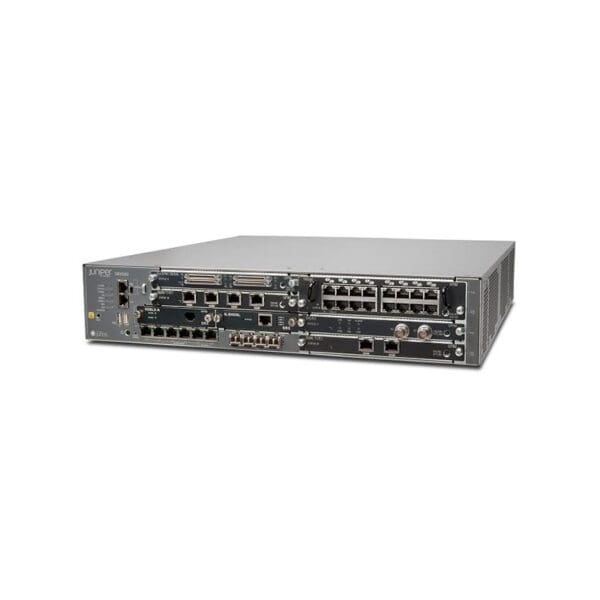

SRX550-645AP-M-TAA Juniper Networks SRX550 Services Gateway
SRX550-645AP-M-TAA Overview
The SRX550 services gateway delivers a single, consolidated, advanced branch networking and security platform with ten built-in GbE ports, two mini-PIM slots, and six GPIM or XPIM slots for unmatched modularity and flexibility.
$11,938.00
Shipping calculated at checkout.
SRX550-645AP-M-TAA Technical Specifications
Juniper Networks SRX550 Services Gateway security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | SRX550 Services Gateway |
| Packaged Quantity | :1 |
RAM
| Installed Size | :4 GB |
|---|
Flash Memory
| Installed Size | :8 GB, 8 GB |
|---|
Performance
| Performance :Antivirus throughput | 300 Mbps, Routing throughput: 1000000 packets per second, Firewall throughput (64-byte packet size): 700000 packets per second, Connection rate: 27000 connections per second, Firewall throughput (IMIX): 2 Gbps, Firewall throughput (large packets): 7 Gbps, IPS throughput: 800 Mbps, Firewall throughput (HTTP): 2 Gbps, VPN throughput (IPSec): 1 Gbps |
|---|
Capacity
| Capacity :BGP instances | 56, RIP instances: 56, Concurrent VPN tunnels: 2000, Concurrent sessions: 375000, RIP routes: 712000, Static routes: 100000, OSPF instances: 56, IPSec VPN tunnels: 2000, VPN tunnel interfaces: 456, BGP routes: 712000, OSPF routes: 200000, BGP peers: 192, Security zones: 96, MLPPP maximum physical interfaces: 12, MLFR maximum physical interfaces: 12, Maximum number of users: unlimited, Virtual routers: 128, RIP routes: 32000, Virtual interfaces (VLANs): 3967, Maximum number of remote users: 500, Security policies: 8000 |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | HDLC, Gigabit Ethernet, FRF.15, V.35, PPP, FRF.12, RS-449, MLFR, Ethernet, RS-232, FRF.16, Frame Relay, MLPPP, Fast Ethernet, X.21 |
| Routing Protocol | GRE, OSPF, DVMRP, PIM-SSM, BGP, IGMP, IGMPv2, VRRP, RIPng, IS-IS, MSDP, PIM-DM, MLD, Static IP routing, RIP-1, RIP-2, MPLS, OSPFv3, PIM-SM, IGMPv3, ECMP |
| Switching Protocol | Ethernet, Frame Relay |
| Network / Transport Protocol | IPSec, RSVP, PPPoA, PPPoE, DHCP |
| Features | DiffServ support, Syslog support, 3G/4G USB Dongle Support, NAT support, IPv6 support, Quality of Service (QoS), DoS attack prevention, LLDP support, DDos attack prevention, Rapid Spanning Tree Protocol (RSTP) support, Link Fragmentation and Interleaving (LFI), PAT support, VPN support, DHCP server, Multiple Spanning Tree Protocol (MSTP) support, IPv4 support, IGMP snooping, Content filtering, Tagged VLAN, J-Flow, Weighted Random Early Detection (WRED), DiffServ Code Point (DSCP) support, DHCP relay, Firewall protection, Modular design |
| Compliant Standards | IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1ad |
Expansion Slots
| Expansion Slots | :8 (total) / 8 (free) x expansion slot |
|---|
Interface Provided
| Interfaces | :6 x 1000Base-T – RJ-45, 2 x USB – Type A, 4 x 1000Base-X – SFP (mini-GBIC) |
|---|
OS Provided
| Type | JUNOS |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Power Redundancy | Optional |
| Installed Qty | :1 |
| Max Supported Qty | :2 |
| Power Provided | :645 watt |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
| Power Consumption Operational | :85 watt |
Miscellaneous
| Included Accessories | Rack mount kit |
|---|---|
| TAA Compliant | Yes |
| Height (Rack Units) | :2 |
| Encryption Algorithm | DES, Triple DES, PKI, IKEv2, RSA, 256-bit SHA, SHA-1, DH, 128-bit AES, 256-bit SHA-2, 256-bit AES, MD5, IKE |
| Authentication Method | LDAP, RADIUS, XAUTH (RADIUS, LDAP, Active Directory), SecurID, X.509 certificates |
| Mtbf | :9.6 years |
| Compliant Standards | EN 60950-1, EN 300386, CB, AS/NZS 60950-1, DOC, ICES Class A, EN55022 Class A, CISPR 22 Class A, UL 60950-1, CS-03, ICSA Firewall certified, JITC, VCCI Class A, FCC Class A certified, ICSA IPSec certified, CSA C22.2 No. 60950-1 |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :18.2 inch |
| Height | :3.5 inch |
| Weight | :21.96 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :10 – 90% (non-condensing) |
