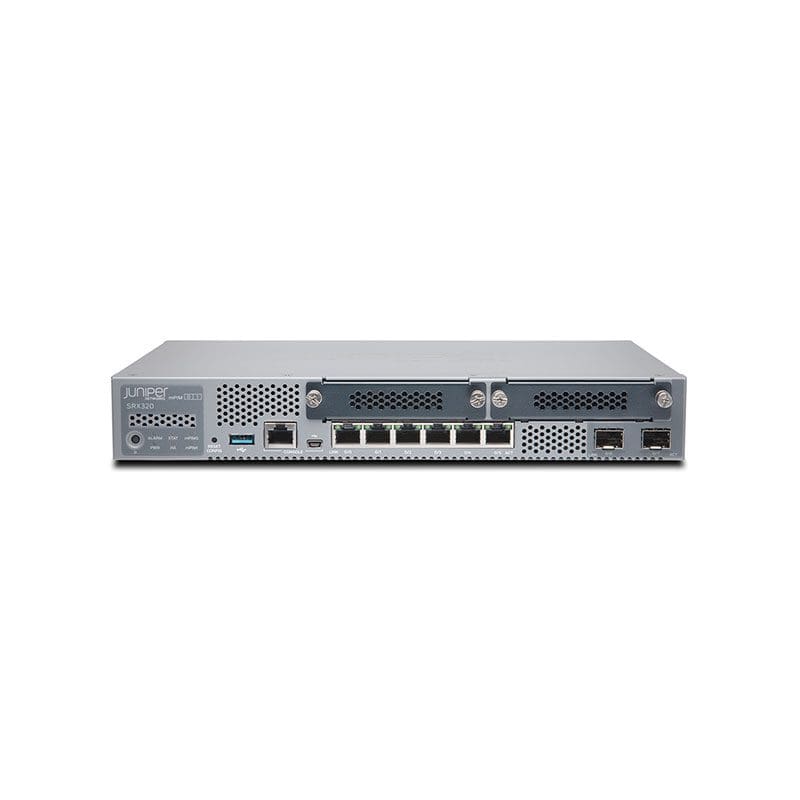

SRX320-TAA Juniper Networks SRX320 Services Gateway security
SRX320-TAA Overview
Juniper Networks SRX300 line of services gateways delivers a great networking and security solution that supports the changing needs of cloud-enabled enterprise networks. Whether rolling out new services and applications across locations, connecting to the cloud, or trying to achieve operational efficiency, the SRX300 line helps organizations realize their business objectives while providing scalable, easy-to-manage, secure connectivity and advanced threat mitigation capabilities.
$1,354.00
Shipping calculated at checkout.
SRX320-TAA Technical Specifications
Juniper Networks SRX320 Services Gateway security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | SRX320 Services Gateway |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Front to back airflow |
|---|
RAM
| Installed Size | :4 GB |
|---|
Flash Memory
| Installed Size | :8 GB, 8 GB |
|---|
Performance
| Performance :VPN throughput (IPSec) | 80 Mbps, Firewall throughput (IMIX): 500 Mbps, Firewall throughput (1518-byte packet size): 1 Gbps, VPN throughput (1400-byte packet size): 250 Mbps, Firewall throughput (64-byte packet size): 200 Kpps, IPS throughput: 100 Mbps, Connection rate: 5000 connections per second |
|---|
Capacity
| Capacity :Maximum number of users | 50, Concurrent sessions: 64000, IPv4 routing table entries: 256000, Security policies: 1000, IPSec VPN tunnels: 256, IPv6 routing table entries: 256000, Security zones: 16, MAC addresses: 15000, GRE tunnels: 256, Maximum number of NAT rules: 1000, Virtual routers: 32, Virtual interfaces (VLANs): 128 |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Desktop |
| Ports Qty | :8 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, PPP, Ethernet, Fast Ethernet, MLPPP, MLFR, Frame Relay, HDLC |
| Routing Protocol | MPLS, IS-IS, RIP-1, IGMP, PIM-DM, PIM-SM, OSPF, BGP, Static IP routing, RIP-2, PIM-SSM, IGMPv2, ECMP, OSPFv3, VRRP, MSDP, DVMRP |
| Network / Transport Protocol | DHCP, RSVP, IPSec, DNS, PPPoE, DDNS |
| Remote Management Protocol | SSH, SNMP, HTTP, Telnet, CLI |
| Features | DiffServ Code Point (DSCP) support, URL filtering, Label Distribution Protocol (LDP), DHCP client, Intrusion Prevention System (IPS), Inspect SSL Encrypted Traffic, NAT support, Spanning Tree Protocol (STP) support, IPv6 support, IPSec NAT-Traversal (NAT-T), Dead Peer Detection (DPD), Quality of Service (QoS), LLDP support, PAT support, MACsec support, Front to back airflow, Anti-spam protection, DHCP server, Rapid Spanning Tree Protocol (RSTP) support, Anti-virus protection, Virtual Private LAN Service (VPLS), Firewall protection, Weighted Random Early Detection (WRED), J-Flow, DDos attack prevention, IPv4 support, VPN support, DHCP relay, Generic Routing Encapsulation (GRE) |
| Compliant Standards | IEEE 802.1p, IEEE 802.1x |
| IP | Telephony |
| VoIP Protocols | SDP |
Expansion Slots
| Expansion Slots | :2 (total) / 2 (free) x expansion slot |
|---|
Interface Provided
| Interfaces | :2 x 1000Base-X – SFP (mini-GBIC), 1 x console – RJ-45, 1 x mini-USB, 1 x USB 2.0 – Type A, 6 x 1000Base-T – RJ-45 |
|---|---|
| OS | Provided |
| Type | JUNOS |
Power Device
| Type | External power adapter |
|---|---|
| Power Consumption Operational | :27 watt |
Miscellaneous
| TAA Compliant | Yes |
|---|---|
| Encryption Algorithm | MD5, DES, IKE, SHA-1, 256-bit SHA, IKEv2, SSL, PKI, Triple DES, 256-bit AES |
| Authentication Method | X.509 certificates, Secure Shell (SSH) |
| Compliant Standards | RoHS2, FCC Class A certified |
Dimensions & Weight
| Width | :11.8 inch |
|---|---|
| Depth | :7.5 inch |
| Height | :1.7 inch |
| Weight | :3.33 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :10 – 90% (non-condensing) |
