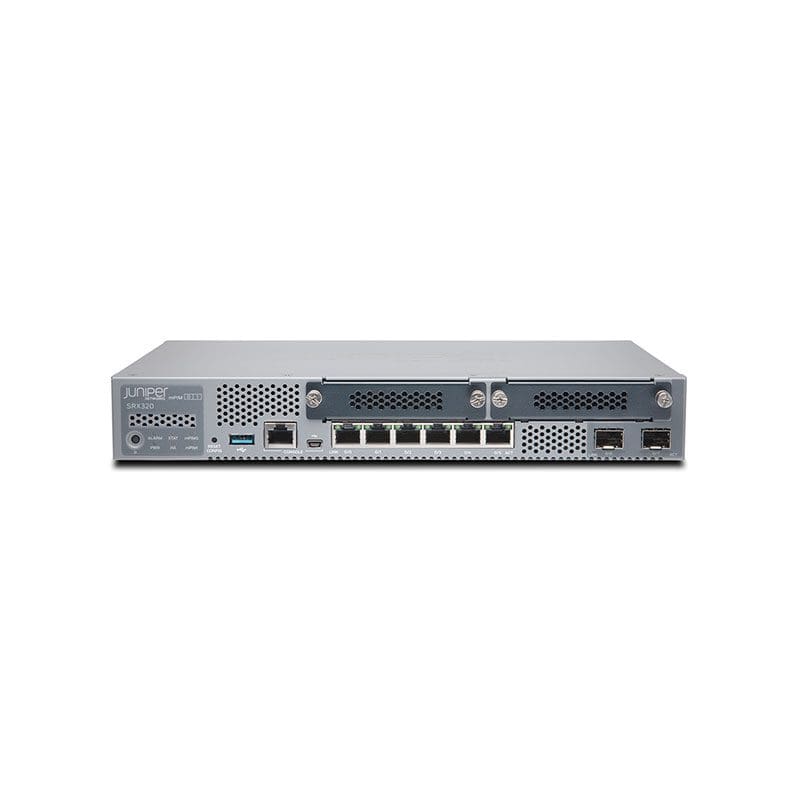

SRX320-SYS-JB-P Juniper Networks SRX320 Services Gateway
SRX320-SYS-JB-P Overview
Juniper Networks SRX300 line of services gateways delivers a great networking and security solution that supports the changing needs of cloud-enabled enterprise networks. Whether rolling out new services and applications across locations, connecting to the cloud, or trying to achieve operational efficiency, the SRX300 line helps organizations realize their business objectives while providing scalable, easy-to-manage, secure connectivity and advanced threat mitigation capabilities.
$1,410.00
Shipping calculated at checkout.
SRX320-SYS-JB-P Technical Specifications
Juniper Networks SRX320 Services Gateway security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | SRX320 Services Gateway |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Front to back airflow |
|---|
RAM
| Installed Size | :4 GB |
|---|
Flash Memory
| Installed Size | :8 GB, 8 GB |
|---|
Performance
| Performance :Firewall throughput (64-byte packet size) | 200 Kpps, Firewall throughput (IMIX): 500 Mbps, Connection rate: 5000 connections per second, IPS throughput: 100 Mbps, Firewall throughput (1518-byte packet size): 1 Gbps, VPN throughput (IPSec): 80 Mbps, VPN throughput (1400-byte packet size): 250 Mbps |
|---|
Capacity
| Capacity :IPSec VPN tunnels | 256, Virtual interfaces (VLANs): 128, Virtual routers: 32, Concurrent sessions: 64000, Security policies: 1000, IPv4 routing table entries: 256000, Maximum number of users: 50, IPv6 routing table entries: 256000, MAC addresses: 15000, Security zones: 16, GRE tunnels: 256, Maximum number of NAT rules: 1000 |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Desktop |
| Ports Qty | :8 |
| Connectivity Technology | Wired |
| Data Link Protocol | PPP, MLFR, Frame Relay, Gigabit Ethernet, Fast Ethernet, HDLC, Ethernet, MLPPP |
| Routing Protocol | DVMRP, MSDP, PIM-SM, IGMPv2, PIM-SSM, RIP-2, OSPF, VRRP, IGMP, BGP, PIM-DM, RIP-1, IS-IS, MPLS, Static IP routing, OSPFv3, ECMP |
| Network / Transport Protocol | DHCP, IPSec, RSVP, DDNS, PPPoE, DNS |
| Remote Management Protocol | SSH, SNMP, CLI, HTTP, Telnet |
| Power Over Ethernet (PoE) | PoE+ |
| Features | VPN support, Anti-spam protection, DHCP relay, Anti-virus protection, NAT support, Rapid Spanning Tree Protocol (RSTP) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), Weighted Random Early Detection (WRED), Quality of Service (QoS), LLDP support, URL filtering, Label Distribution Protocol (LDP), MACsec support, Generic Routing Encapsulation (GRE), J-Flow, DHCP server, IPv6 support, Front to back airflow, PAT support, Virtual Private LAN Service (VPLS), Firewall protection, DDos attack prevention, IPv4 support, Intrusion Prevention System (IPS), DHCP client, DiffServ Code Point (DSCP) support, Inspect SSL Encrypted Traffic, Spanning Tree Protocol (STP) support |
| Compliant Standards | IEEE 802.1p, IEEE 802.1x |
| IP | Telephony |
| VoIP Protocols | SDP |
Expansion Slots
| Expansion Slots | :2 (total) / 2 (free) x expansion slot |
|---|
Interface Provided
| Interfaces | :1 x mini-USB, 2 x 1000Base-X – SFP (mini-GBIC), 6 x 1000Base-T (PoE+) – RJ-45, 1 x USB 2.0 – Type A, 1 x console – RJ-45 |
|---|---|
| OS | Provided |
| Type | JUNOS |
Software
| Type | Junos Software Base |
|---|
Power Device
| Type | External power adapter |
|---|---|
| Power Consumption Operational | :27 watt |
Miscellaneous
| Color Category | Gray |
|---|---|
| TAA Compliant | Yes |
| Encryption Algorithm | DES, IKEv2, IKE, MD5, PKI, SSL, Triple DES, 256-bit AES, 256-bit SHA, SHA-1 |
| Authentication Method | Secure Shell (SSH), X.509 certificates |
| Compliant Standards | FCC Class A certified, RoHS2 |
Dimensions & Weight
| Width | :11.8 inch |
|---|---|
| Depth | :7.5 inch |
| Height | :1.7 inch |
| Weight | :3.33 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :10 – 90% (non-condensing) |
