SRX1K3K-NP-2XGE-SFPP Juniper Network Processing I/O Card
SRX1K3K-NP-2XGE-SFPP Overview

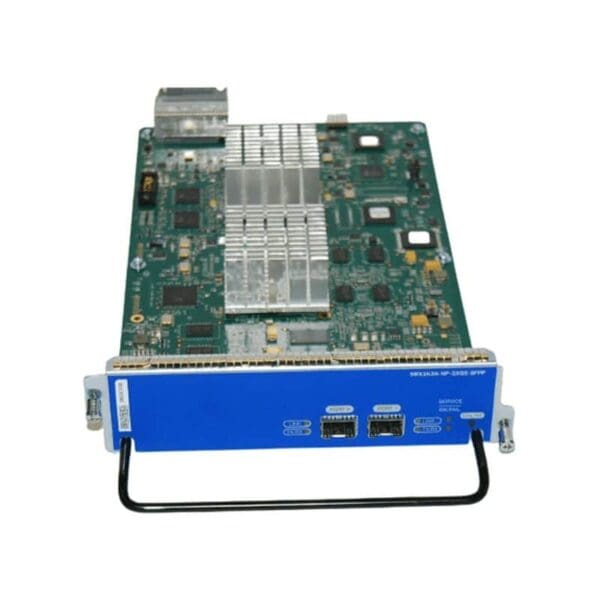

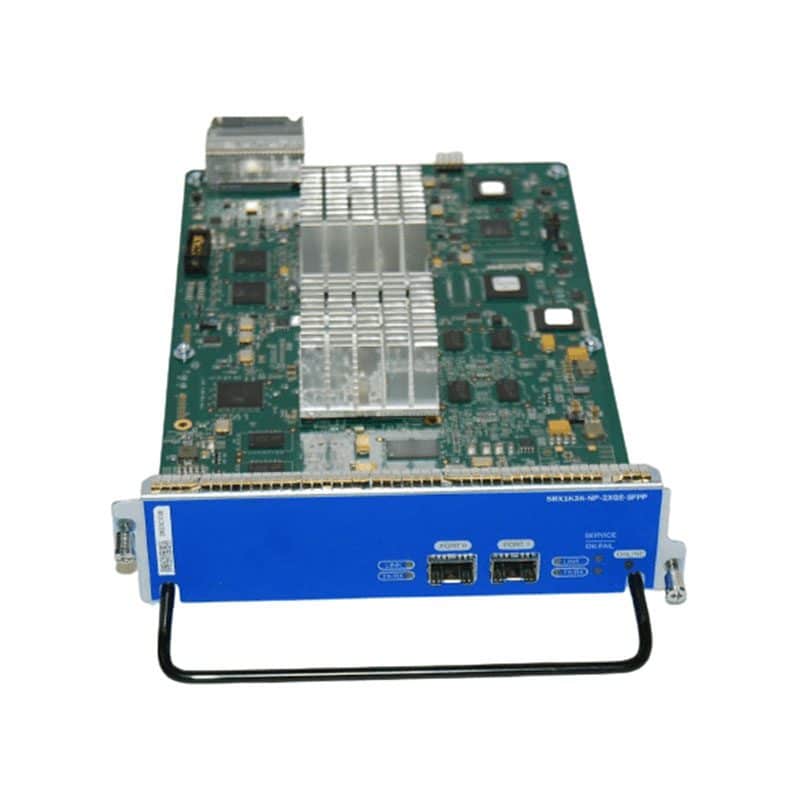

The Network Processing I/O card (NP-IOC) SRX1K3K-NP-2XGE-SFPP is an IOC that includes its own Network Processing Unit (NPU), so that traffic traversing the NP-IOC does not have to also traverse the services gateway bus to a remote NPC. This feature makes the NP-IOC well-suited to low-latency applications. It is inserted horizontally into the midplane of the services gateway to communicate with the SFB and to receive power. To use fiber interface media, install enhanced small form-factor pluggable (SFP+) transceivers on the desired ports. LEDs on the faceplate of the NP-IOC indicate port status and connectivity.
$23,699.00
Shipping calculated at checkout.
SRX1K3K-NP-2XGE-SFPP Technical Specifications
Juniper Networks Network Processing I/O Card control processor
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | Network Processing I/O Card |
| Packaged Quantity | :1 |
Networking
| Type | Control processor |
|---|---|
| Form Factor | Plug-in module |
| Ports Qty | :2 |
| Connectivity Technology | Wired |
| Status Indicators | Link OK, Diagnostic, Fail |
| Features | Hot swap module replacement |
Expansion Slots
| Expansion Slots | :2 (total) / 2 (free) x SFP+ |
|---|
Slot Required
| Compatible Slots | :1 x expansion slot |
|---|
Power Device
| Power Consumption Operational | :52 watt |
|---|
System Requirements
| OS Required | JUNOS |
|---|
Dimensions & Weight
| Weight | :2.43 lbs |
|---|
