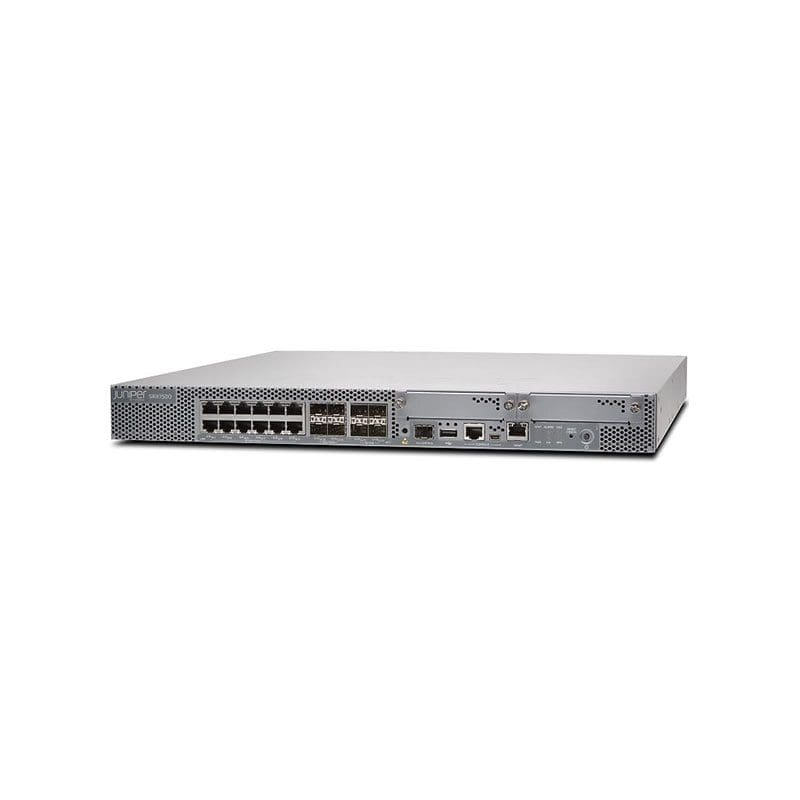

SRX1500-AC-TAA Juniper Networks SRX1500 Services Gateway security
SRX1500-AC-TAA Overview
This product requires the JSB or JSE Software Bundle to complete the system. Manage network storage efficiently with the Juniper Networks SRX1500 Services Gateway Security Appliance.
$13,661.00
Shipping calculated at checkout.
SRX1500-AC-TAA Technical Specifications
Juniper Networks SRX1500 Services Gateway security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | SRX1500 Services Gateway |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Front to back airflow |
|---|
RAM
| Installed Size | :16 GB |
|---|
Hard Drive
| Type | SSD |
|---|---|
| Form Factor | mSATA |
| Form Factor (metric) | mSATA |
| Capacity | :16 GB |
| Hard Drive | (2nd) |
| Type | SSD |
| Capacity | :120 GB |
Performance
| Performance :Firewall throughput (IMIX) | 5 Gbps, Firewall throughput (64-byte packet size): 2 Mpps, Firewall throughput (1518-byte packet size): 10 Gbps, VPN throughput (IPSec): 1 Gbps, Application control (AVC) throughput: 3 Gbps, Connection rate: 50000 connections per second |
|---|
Capacity
| Capacity :GRE tunnels | 2000, Virtual routers: 512, IPv6 routing table entries: 2000000, Virtual interfaces (VLANs): 1000, MAC addresses: 64000, IPSec VPN tunnels: 2000, Concurrent IPSec sessions: 512000, IPv4 routing table entries: 2000000, Security zones: 512, Security policies: 16000, Maximum number of NAT rules: 8000 |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Rack-mountable |
| Ports Qty | :20 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, Fast Ethernet, 10 Gigabit Ethernet, Ethernet |
| Routing Protocol | OSPF, PIM-SSM, VRRP, PIM-DM, RIP-2, IGMPv2, MSDP, IGMP, PIM-SM, BGP, RIP-1, Static IP routing, ECMP, DVMRP, OSPFv3 |
| Network / Transport Protocol | IPSec, DHCP, DNS, PPPoE, DDNS |
| Remote Management Protocol | Telnet, SNMP, SSH, CLI, HTTP |
| Features | DHCP client, DDos attack prevention, IPv6 support, Intrusion Prevention System (IPS), Firewall protection, DiffServ Code Point (DSCP) support, VPN support, LLDP support, Generic Routing Encapsulation (GRE), J-Flow, DHCP server, Anti-virus protection, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, IPv4 support, Front to back airflow, NAT support, Quality of Service (QoS), PAT support, DHCP relay, Spanning Tree Protocol (STP) support, URL filtering, Inspect SSL Encrypted Traffic, Anti-spam protection |
| Compliant Standards | IEEE 802.1x, IEEE 802.1p |
| IP | Telephony |
| VoIP Protocols | SDP |
Expansion Slots
| Expansion Slots | :2 (total) / 2 (free) x expansion slot |
|---|
Interface Provided
| Interfaces | :4 x 1000Base-X – SFP (mini-GBIC), 1 x 1000Base-T (management) – RJ-45, 12 x 1000Base-T – RJ-45, 4 x 10Gb Ethernet – SFP+, 1 x mini-USB, 1 x USB 2.0 – Type A, 1 x console – RJ-45, 1 x management – SFP (mini-GBIC) |
|---|---|
| OS | Provided |
| Type | JUNOS |
Power Device
| Type | External power adapter |
|---|---|
| Power Redundancy | Optional |
| Installed Qty | :1 |
| Max Supported Qty | :2 |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
| Power Consumption Operational | :150 watt |
Miscellaneous
| TAA Compliant | Yes |
|---|---|
| Height (Rack Units) | :1 |
| Encryption Algorithm | SSL, DES, MD5, IKE, 256-bit SHA, IKEv2, 256-bit AES, SHA-1, Triple DES, PKI |
| Authentication Method | Active Directory, Secure Shell (SSH), X.509 certificates |
| Mtbf | :85,787 Hours |
| Compliant Standards | FCC Class A certified, RoHS2 |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :18.2 inch |
| Height | :1.7 inch |
| Weight | :16.09 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :10 – 90% (non-condensing) |
