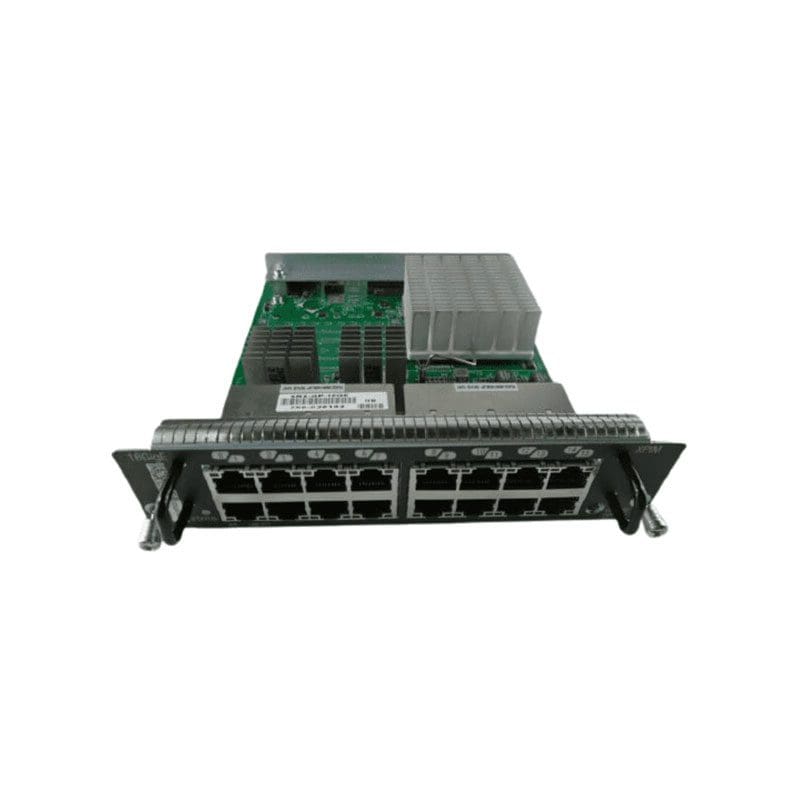

SRX-GP-16GE-POE Juniper Networks expansion module
SRX-GP-16GE-POE Overview
A Gigabit-Backplane Physical Interface Module (GPIM) is a network interface card (NIC) that installs in the front slots of the SRX550 or SRX650 Services Gateway to provide physical connections to a LAN or a WAN. The GPIM receives incoming packets from a network and transmits outgoing packets to a network. These modules complement the onboard Ethernet interfaces to extend the types and port counts of network connections for the LAN or WAN
$475.00
Shipping calculated at checkout.
SRX-GP-16GE-POE Technical Specifications
Juniper Networks expansion module Gigabit Ethernet x 16
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Packaged Quantity | :1 |
Networking
| Type | Expansion module |
|---|---|
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet |
| Data Transfer Rate | :1 GBps |
| Status Indicators | Status, Power, Link/activity |
Ports
| Qty | :16 |
|---|---|
| Type | :10/100/1000 |
Interface Provided
| Interfaces | :16 x 1000Base-T (PoE) – RJ-45 |
|---|
Slot Required
| Compatible Slots | :1 x expansion slot |
|---|
Dimensions & Weight
| Width | :6.7 inch |
|---|---|
| Depth | :8.5 inch |
| Height | :1.6 inch |
| Weight | :1.5 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% |
Compatibility
| Compatible With | Juniper Networks SRX650 Services Gateway |
|---|
