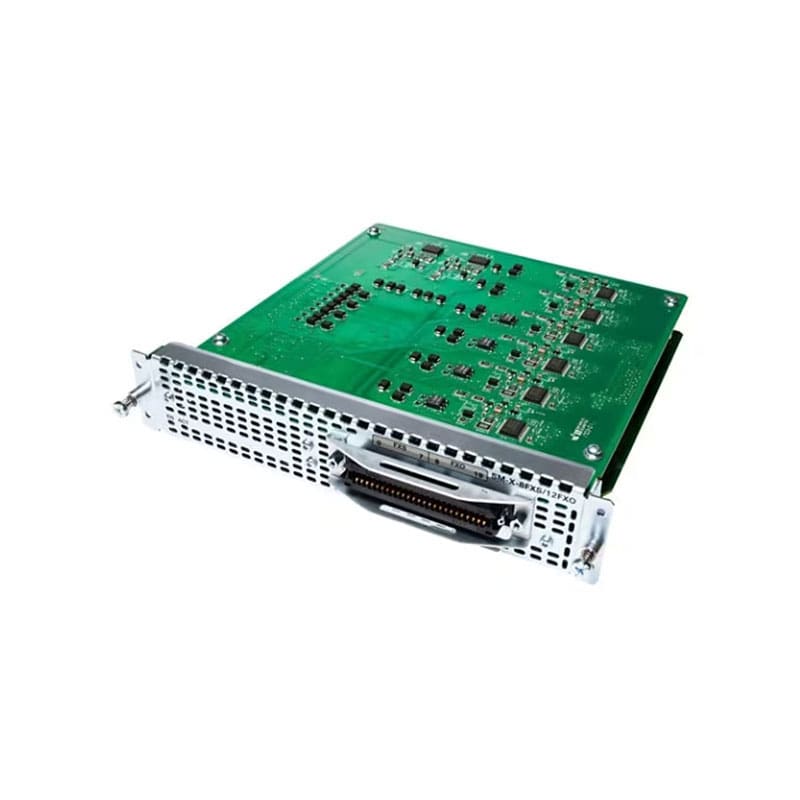

SM-X-8FXS/12FXO Technical Specifications
Cisco High-Density Analog Voice Service expansion module – FXS x 8 + FXO x 12
| Brand | Cisco |
|---|---|
| Product Line | Cisco High-Density Analog Voice Service Module |
| Manufacturer | CISCO DS HARDWARE DIRECT |
Network & Communication
| Compliant Standards | G.711, G.726, G.729a |
|---|---|
| Connectivity Technology | Wired |
| Form Factor | Plug-in module |
| Network Standard | DHCP, DNS, RTCP, RTP |
| Product Type | Expansion module |
| Remote Management | HTTP, SNMP, Telnet, TFTP |
| Status Indicators | Status |
Connectivity
| Interface Provided | 12 x FXO – RJ-21, 8 x FXS – RJ-21 |
|---|---|
| Port Quantity | 8 |
| Network & Adapter Ports | FXS |
Power
| Power Consumption Operational | 53.55 watt |
|---|
Technical Information
| Max Operating Temperature | 104 degree Fahrenheit |
|---|---|
| Min Operating Temperature | 32 degree Fahrenheit |
Product Information
| Packaged Quantity | 1 |
|---|---|
| Ports (2nd) Quantity | 12 |
| Ports (2nd) Type | FXO |
Dimensions & Weight
| Height | 1.6 inch |
|---|---|
| Weight | 30.33 ounce |
| Width | 7.4 inch |
| Depth | 7.6 inch |
Physical Characteristics
| Color Category | Silver |
|---|
