SG220-52-K9-CN Technical Specifications

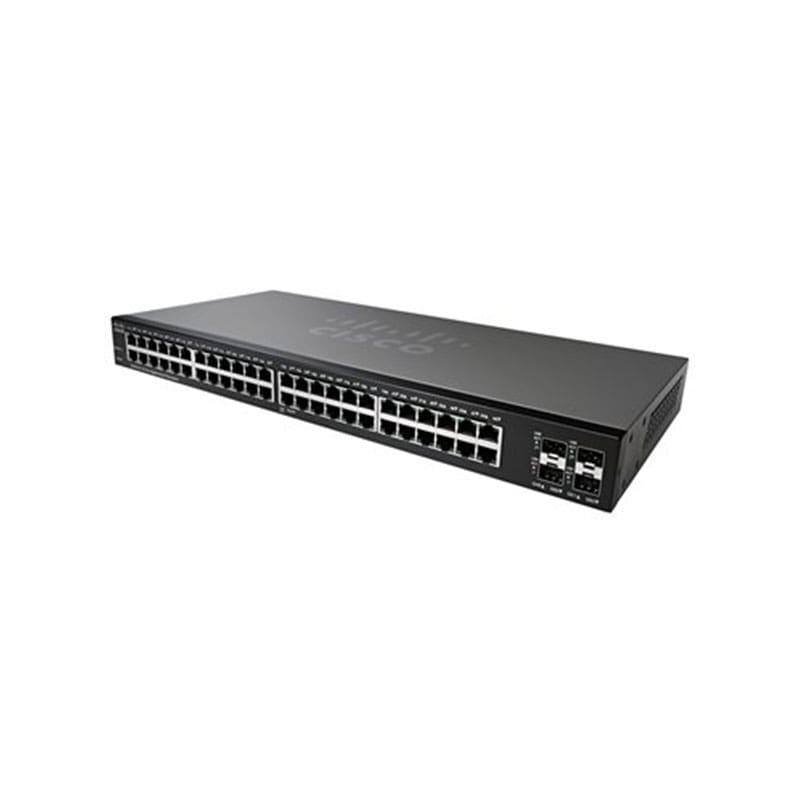

Cisco 220 Series SG220-52 Switch 52 ports Smart Rack-mountable
| Device Type | Switch – 52 ports – smart |
|---|---|
| Manufacture Part Number | SG220-52-K9-CN |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x SFP |
| MAC Address Table Size | 16384 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| RAM | 128 MB |
| Flash Memory | 32 MB |
Expansion / Connectivity
Power
| Power Device | Internal power supply |
|---|---|
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
Miscellaneous
| Cables Included | 1 x console cable |
|---|---|
| Rack Mounting Kit | Included |
| Mtbf | 321,025 hours |
| Localization | China |
Dimensions & Weight
| Width | 17.3 in |
|---|---|
| Depth | 7.9 in |
| Height | 1.7 in |
| Weight | 7.32 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 122 °F |
