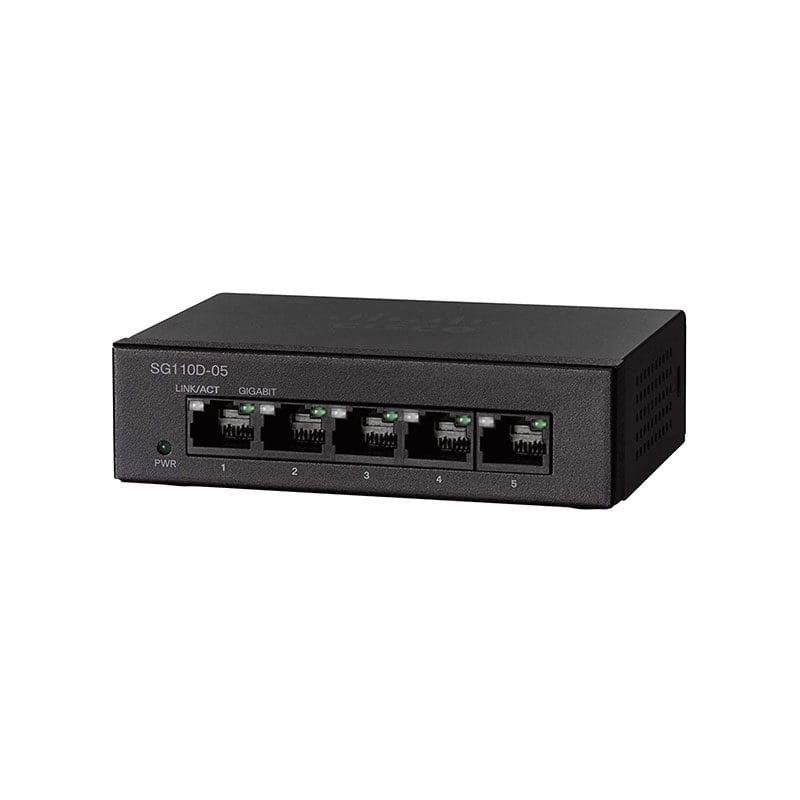

SG110D-05 Technical Specifications
Cisco Small Business Unmanaged Switch 5 Ethernet Ports
| Manufacture |
Cisco Systems, Inc |
| Manufacture |
Part Number |
| Number of ports |
5 Ports |
| Ports Type |
Ethernet Ports |
| Type |
Switch |
Specifications
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Cabling Type
| Category |
5e or better |
| LED |
indicators |
System/PWR, link/activity, 100M,*PoE, *Max PoE, cable diagnostics, loop detection, gigabit,* mini-GBIC*
- if present
- Physical Interfaces
Ports
10/100/1000 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord
- DC 12V, 1.0A
- Lock slot
- Slot for Kensington lock
Physical Specifications
| Physical dimensions |
(W x D x H) |
- 4.33 x 2.95 x 1.18 inches (110 x 75 x 30 mm)
- Fan/fanless models
- All models have no fans and are fanless, except for SG100-24HP
Performance
| Switching capacity |
- 10 Gbps
- Forwarding capacity
- 7.4 mpps
- Capabilities
- Head-of-line (HOL) blocking
- HOL blocking prevention
- Jumbo frame
- 9216 bytes
- Quality of service (QoS)
- 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
- Loop detection
- Helps discover loops in the network to avoid broadcast storms
- Cable diagnostics
- Quickly identify and troubleshoot network cable faults and/or shorts
- Mounting and Physical Security
|
| Mounting |
options |
- Desktop or rack mount
- Physical security lock
- Kensington lock slot
| Environmental |
- Compliance/
- certifications
- UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
- *select models
|
| Operating |
temperature |
| 32° to 104°F (0° to 40°C) |
| Storage |
temperature |
4° to 158°F (-20° to 70°C)
| Operating |
humidity |
| 10% to 90%, relative, noncondensing |
| Storage |
humidity |
| 5% to 90%, relative, noncondensing |
