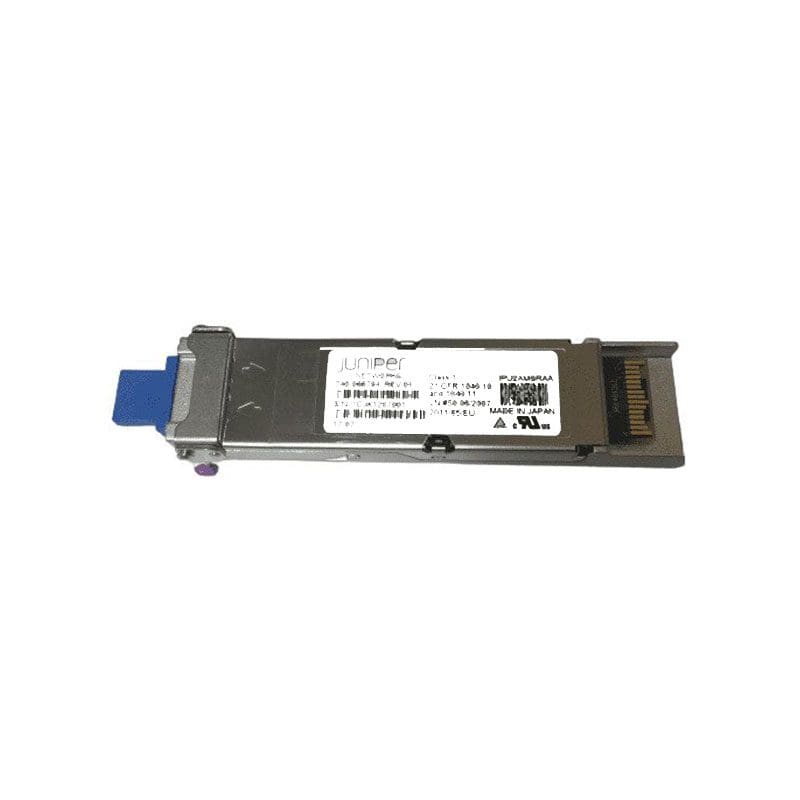

SFPP-10GE-DWDM-IT Juniper SFP 10GE-ZR Module
SFPP-10GE-DWDM-IT Overview
Juniper Networks SFP 10GE-ZR Otn, SMF 80KM, C-Band DWDM Tunable, 40 85C, 2.3W, DDM, Green Latch, Dual LC
$3,389.00
Shipping calculated at checkout.
SFPP-10GE-DWDM-IT Technical Specifications
Juniper Networks SFP 10GE-ZR Otn, SMF 80KM, C-Band DWDM Tunable, 40 85C, 2.3W, DDM, Green Latch, Dual LC
| Product Name | SFP 10GE-ZR Otn, SMF 80KM, C-Band DWDM Tunable, 40 85C, 2.3W, DDM, Green Latch, Dual LC |
|---|---|
| Manufacturer Part Number | SFPP-10GE-DWDM-IT |
| Product Type | SFP+ |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-ZR |
| Environmentally Friendly | Yes |
| Fiber Mode Supported | Single-mode |
| Interfaces / Ports Details | 1 x 10GBase-ZR Network |
| MSA compliance (SFF, for e.g. SFF-8665) | SFF-8472 |
| Digital Diagnostic Monitoring | Transceiver Temperature, Transceiver Supply Voltage, Tx Bias Current, Tx output power, Rx received optical power |
| Signaling rate, each lane | 9.95 Gbps to 11.0957 Gbps |
| Transmitter Dispersion OSNR Penalty | 2 dB |
| Modulation format | NRZ |
| FEC types | GFEC, EFEC |
