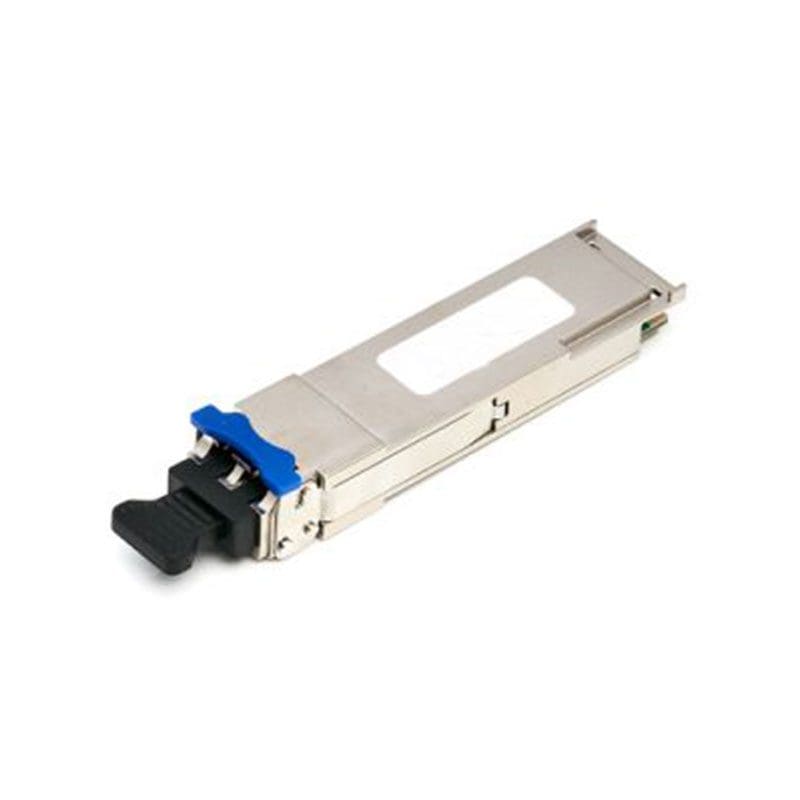

SFPP-10G-LR-OTN Juniper SFP+ 10GE LR Pluggable Transceiver
SFPP-10G-LR-OTN Overview
Juniper 10Gbps 10GBase-ER Single-mode Fibe 10km 1310nm LC Connector SFP+ Transceiver
$5,359.00
Shipping calculated at checkout.
SFPP-10G-LR-OTN Technical Specifications
Juniper Networks SFP+ 10GE LR Pluggable Transceiver
| Product Name | SFP+ 10GE LR Pluggable Transceiver Dual |
|---|---|
| Manufacturer Part Number | SFPP-10G-LR-OTN |
| Product Type | SFP+ |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-LR |
| Environmentally Friendly | Yes |
| Interfaces / Ports Details | 1 x LC 10GBase-LR Network |
Standard: 10GBASE-LR
| Transmitter wavelengths (range) | 1260 nm through 1355 nm |
|---|---|
| Transmitter output power, each lane (minimum) | –8.2 dBm |
| Transmitter output power, each lane (maximum) | 0.5 dBm |
| Receiver input power, each lane (minimum) | –14.4 dBm |
| Receiver input power, each lane (maximum) | 0.5 dBm |
| Cable type | SMF |
| Core size/cladding | 9/125 µm |
| Distance | 10 km |
| Maximum Power consumption (W) | 1.5 W |
| Operating Temperature (range) | 0° C to 85° C |
| Storage temperature | –40° C to 85° C |
