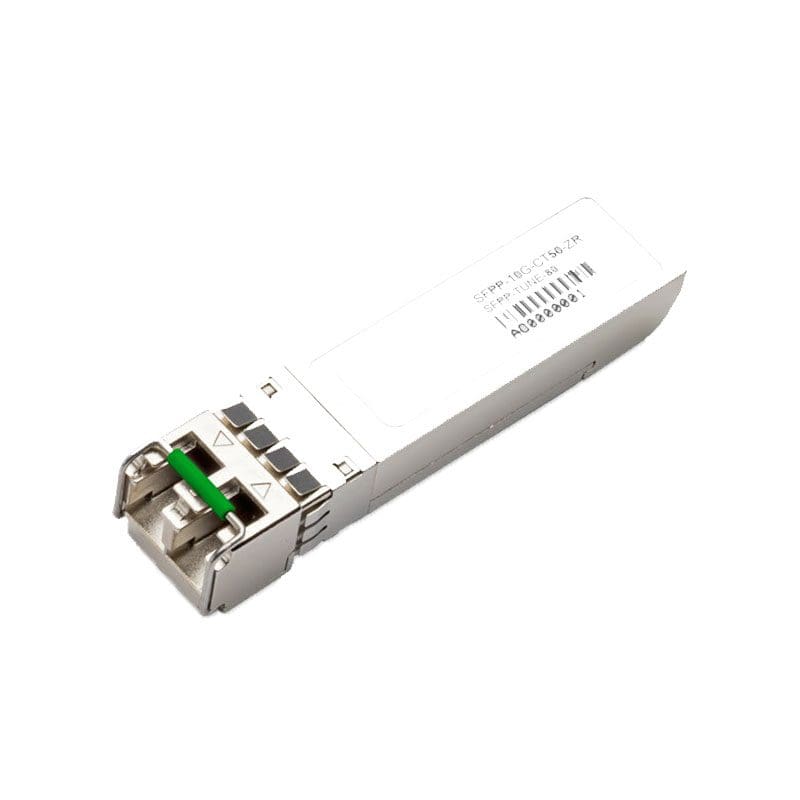

SFPP-10G-CT50-ZR Juniper Network SFP+ Transceiver module 10 GigE
SFPP-10G-CT50-ZR Overview
This Juniper SFP+ Transceiver provides 10GBase-DWDM throughput up to 80km over single-mode fiber (SMF) using a wavelength of 1530nm to 1560nm via an LC connector.
$19,600.00
Shipping calculated at checkout.
SFPP-10G-CT50-ZR Technical Specifications
Juniper Network SFP+ Transceiver module 10 GigE
| Manufacturer | Juniper Network |
|---|---|
| Packaged Quantity | :1 |
Networking
| Type | SFP+ Transceiver module |
|---|---|
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-DWDM |
| Data Link Protocol | :10 Gigabit Ethernet |
| Data Transfer Rate | :10 GBps |
| Optical Wave Length | :1530-1560 nm |
| Max Transfer Distance | :49.7 |
| Features | Digital Optical Monitoring (DOM) support |
| Connectors | (for SD) |
| Left Connector Type | LC single-mode |
Interface Provided
| Interfaces | :1 x Ethernet 10GBase-DWDM – LC single-mode x 2 |
|---|---|
| Transmitter wavelengths (range) | 1528.38 nm through 1568.77 nm (tunable) |
| Transmitter output power, each lane (minimum) | –1.0 dBm |
| Transmitter output power, each lane (maximum) | +3.0 dBm |
| Receiver input power, each lane (minimum) | –24.0 dBm |
