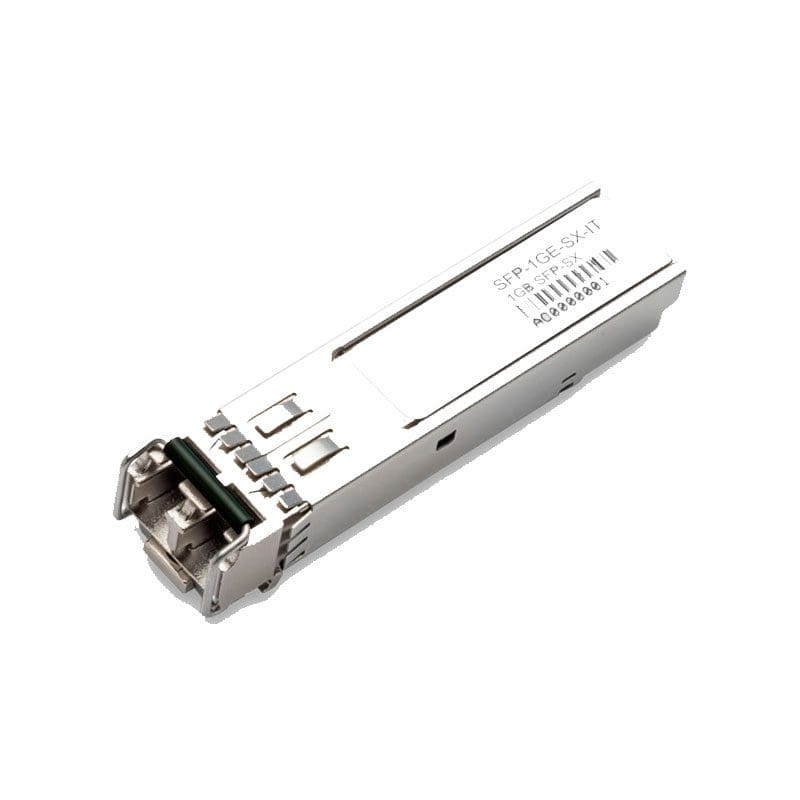

SFP-1GE-SX-IT Juniper 1000Base SX LC, 550 meters, SFP Transceiver
SFP-1GE-SX-IT Overview
Juniper 1000Base SX LC, 550 meters, 850 nm SFP Transceiver
$185.00
Shipping calculated at checkout.
SFP-1GE-SX-IT Technical Specifications
Juniper 1000Base SX LC, 550 meters, 850 nm SFP Transceiver
| Form Factor | SFP |
|---|---|
| Port Interface | 1 x 1.25GBase LC |
| Interface Details | 1000Base SX |
| Data Rate | 1.25 Gbps |
| Wavelength | 850 nm |
| Distance | 550 meters (1804 feet) |
| Temperature Range | Industrial -40°C to 85°C |
| Digital Diagnostics (DDM) | Yes |
| Connection | Multi-mode Fiber (MMF) |
| Hot Swappable | Yes |
| MSA compliance (SFF, for e.g. SFF-8665) | SFF-8472 |
| Digital Diagnostic Monitoring | Transceiver Temperature, Transceiver Supply Voltage, Tx Bias Current, Tx output power, Rx received optical power |
| Signaling rate, each lane | 1.25 GBd +/- 100 ppm |
| Transmitter fibers | 1 |
| Transmitter wavelengths (range) | 770 nm to 860 nm |
| Receive lane wavelengths (range) | 770 nm to 860 nm |
| Transmitter RMS spectral width (maximum) | 0.85 nm |
| Transmitter output power, each lane (minimum) | -9.5 dBm |
| Cable type | MMF |
