SF500-24MP-K9-NA Technical Specifications

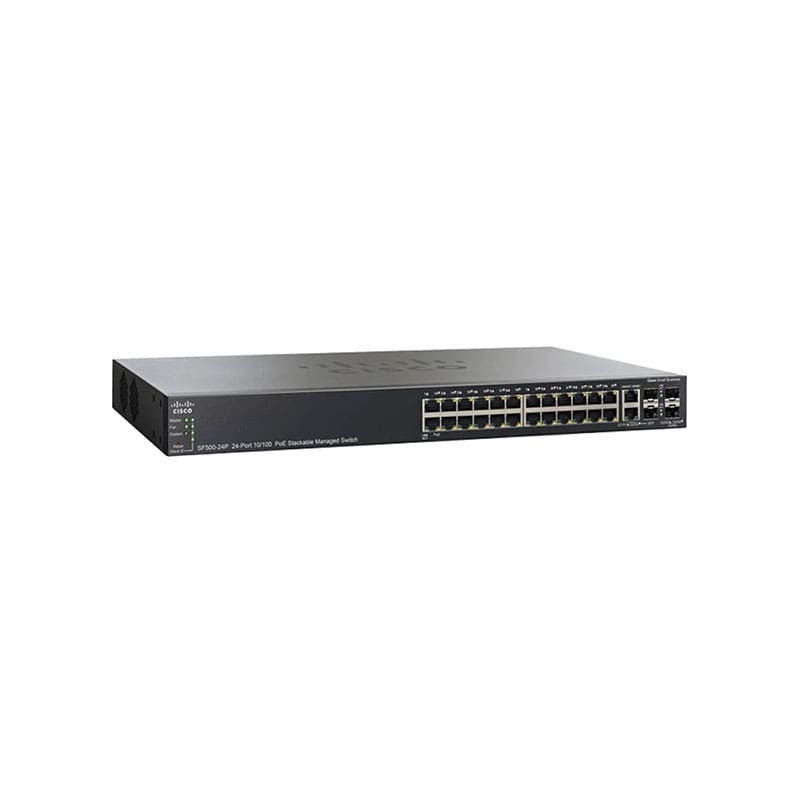

Cisco Systems SF500-24MP 24-Port 10/100 Max PoE Stackable Managed Switch
| Manufacturer Part Number | SF500-24MP-K9-NA |
|---|---|
| Product Type | Layer 3 Switch |
| Manageable | Yes |
| Ethernet Technology | Fast Ethernet, Gigabit Ethernet |
| Number of Total Expansion Slots | 4 |
| Product Family | 500 |
| Stack Port | Yes |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | No |
| Expansion Slot Type | SFP |
| Form Factor | Desktop |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Number of SFP Slots | 4 |
| Modular | No |
| Uplink Port | Yes |
| Height | 1.7″ |
| Width | 17.3″ |
| Depth | 10.1″ |
| Product Series | 500 |
| Product Model | SF500-24MP |
| Twisted Pair Cable Standard | Category 5 |
| Token Ring Port | No |
| LRE Port | No |
| Management Port | Yes |
| Number of PoE+ (RJ-45) Ports | 24 |
| Number of Stack Ports | 2 |
| Bypass | No |
| Mtbf | 514157 Hour |
| Flash Memory | 32 MB |
| Standard Memory | 256 MB |
