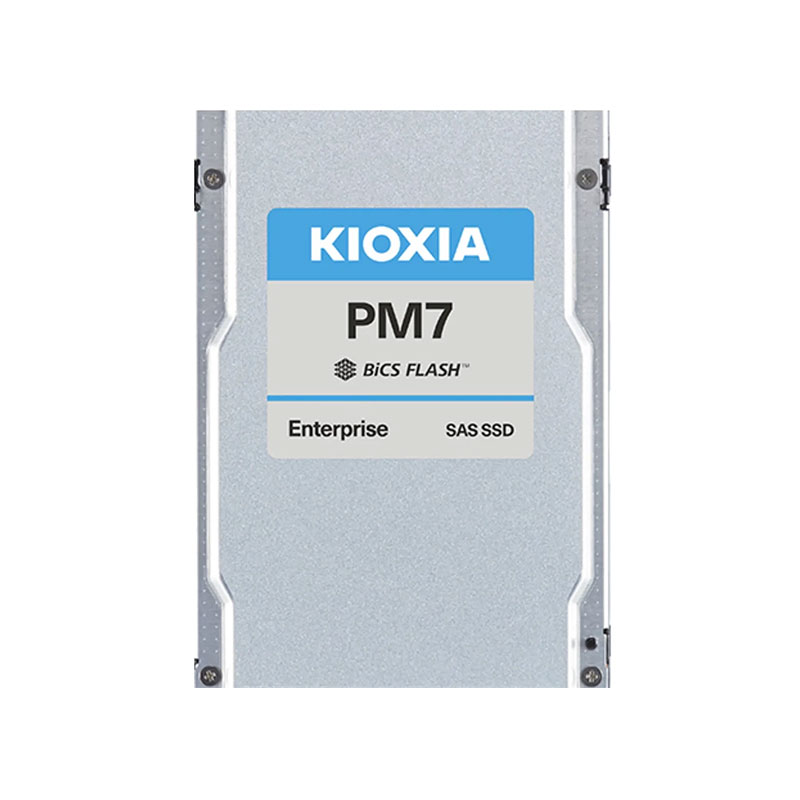

SDFU083DHB01T Kioxia 7.68tb Sas-24gbps Tlc 2.5inch Internal Solid State Drive
SDFU083DHB01T Overview
The KIOXIA SDFU083DHB01T PM7‑R Series 7.68TB SAS SSD is a 7.68 TB enterprise‑class SAS solid‑state drive from KIOXIA’s PM7‑R series, designed for read‑intensive workloads in data centers and server systems. It uses a 24 Gb/s SAS‑4 interface with single/dual‑port support and a standard 2.5‑inch, 15 mm form factor, enabling hot‑swappable deployment in enterprise storage arrays. The drive is built with 112‑layer BiCS FLASH™ TLC NAND flash, delivering a balance of high capacity, performance, and reliability for applications like data warehousing, web services, streaming media, and video‑on‑demand systems.
$4,365.00
Shipping calculated at checkout.
SDFU083DHB01T Technical Specifications
Kioxia Pm7-r Series 7.68tb Sas-24gbps Sie Read Intensive Bics Flash Tlc 2.5inch Enterprise Internal Solid State Drive
| Manufacturer | KIOXIA |
|---|---|
| Part Number | SDFU083DHB01T |
| Type | Solid State Drive – Internal |
Main Specifications
| Capacity | 7.68 Tb |
|---|---|
| Nand Flash Memory Type | Bics Flash Tlc |
| Form Factor | 2.5 |
| Interface | Sas 24gb/s |
| Dimensions (wxdxh) | 15mm X 69.85mm X 100.45mm |
| Weight | 150 G |
Extended Specifications
| Type | Solid State Drive – Internal |
|---|---|
| Capacity | 7.68 Tb |
| Nand Flash Memory Type | Bics Flash Tlc |
| Form Factor | 2.5 |
| Interface | Sas 24gb/s |
Performance
| Sustained 128 Kib Sequential Read | 4,200 Mb/s |
|---|---|
| Sustained 128 Kib Sequential Write | 4100 Mb/s |
| Sustained 4 Kib Random Read | 720k Iops |
| Sustained 4 Kib Random Write | 175k Iops |
Reliability
| Mttf | 2500000 Hours |
|---|---|
| Dwpd | 1 |
