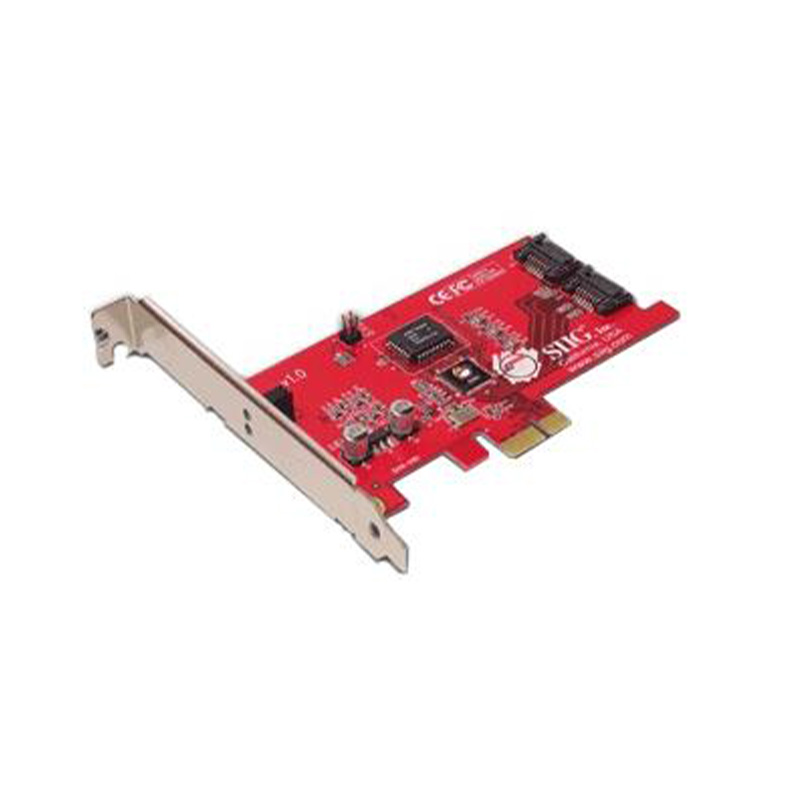

SC-SAE212-S2 SIIG eSATA II PCIe i/e Adaptor 1 x 7-pin Serial SATA External
SC-SAE212-S2 Overview
The SIIG SC-SAE212-S2 is a versatile PCI Express SATA controller card designed to expand both internal and external storage connectivity in desktop systems. It provides two SATA II channels, including one internal SATA port and one external eSATA port, allowing users to connect additional hard drives or SSDs either inside the system or externally. With support for data transfer speeds up to 3Gb/s, it ensures reliable and efficient performance for storage expansion, backups, and data transfer tasks. This controller also supports advanced features such as Native Command Queuing (NCQ), hot-swapping, and 48-bit LBA, enabling compatibility with large-capacity drives and improved performance handling.
$100.00
Shipping calculated at checkout.
SC-SAE212-S2 Technical Specification
SIIG eSATA II PCIe i/e Adaptor 1 x 7-pin Serial ATA/300 Serial ATA Internal, 1 x 7-pin Serial ATA/300 External SATA External
| Manufacturer | SIIG |
|---|---|
| Manufacture Part Number | SC-SAE212-S2 |
| Product Type | SATA / eSATA Controller Card |
| Interface | PCI Express x1 |
| Controller Type | Serial ATA II (SATA/300) |
| Ports | 2 x SATA (1 Internal + 1 External eSATA) |
| Data Transfer Rate | Up to 3Gb/s (300MB/s) |
| Drive Support | Up to 2 Drives |
| Chipset | Silicon Image 3132 |
| Form Factor | Plug-in Card |
| Hot Swap | Supported |
| NCQ Support | Yes (Native Command Queuing) |
| Boot Support | Yes |
