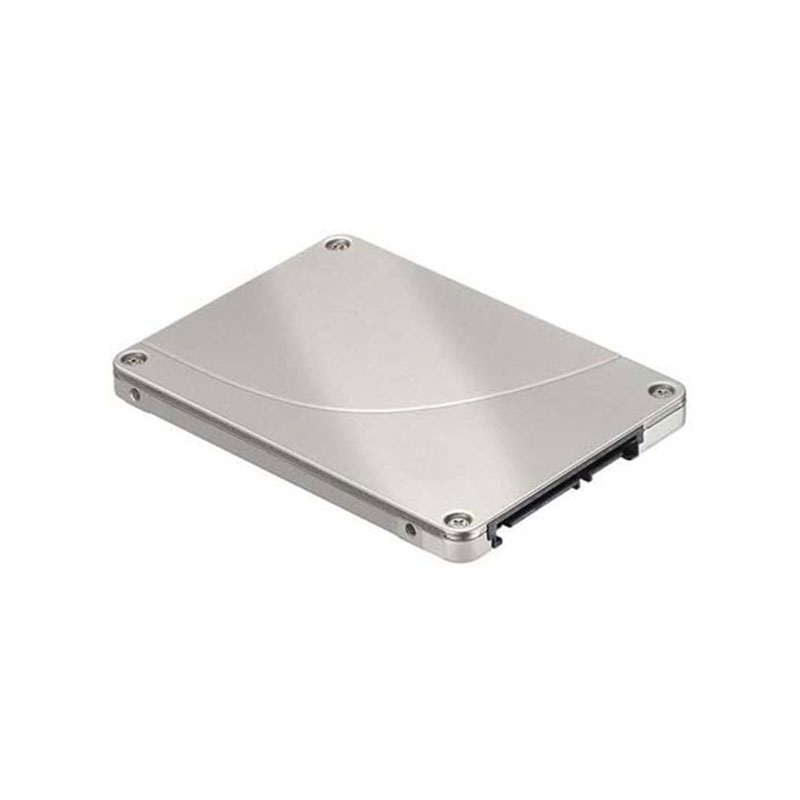

SB5PH27E064T001 Solidigm 6.4TB PCI E Solid State Drive SSD
SB5PH27E064T001 Overview
The Solidigm SB5PH27E064T001 D7‑PS1030 6.4 TB PCI Express 5.0 x4 NVMe Solid State Drive is a high‑performance enterprise SSD designed for data centers, servers, and demanding storage infrastructures. It uses a U.2 15 mm form factor with a PCIe 5.0 ×4 NVMe interface, which delivers extremely fast data transfer speeds and low latency appropriate for modern mixed workloads, artificial intelligence, machine learning, virtualization, and cloud applications. This drive is built with 176‑layer 3D TLC NAND flash and offers very high sequential throughput — up to around 14,500 MB/s for reads and up to 10,000 MB/s for writes — along with up to roughly 3,000,000 IOPS for random reads and about 800,000 IOPS for random writes.
$2,710.00
Shipping calculated at checkout.
SB5PH27E064T001 Technical Specifications
Solidigm D7-PS1030 6.4TB Triple-Level Cell PCI Express 5.0 x4 V7 Generic No Opal 2.5-inch Solid State Drive
| Brand | Solidigm |
|---|---|
| Series | D7‑PS1030 |
| Model/Part | SB5PH27E064T001 |
| Capacity | 6.4 TB |
| Drive Type | Enterprise SSD |
| Form Factor | U.2 2.5‑inch, 15 mm |
| Interface | PCIe 5.0 x4 NVMe |
| NAND Type | 176‑layer 3D TLC |
| Sequential Read | ~14,500 MB/s |
| Sequential Write | ~10,000 MB/s |
| Random Read | ~3,000,000 IOPS |
| Random Write | ~800,000 IOPS |
| Endurance | 3 DWPD (~35 PBW) |
| Mtbf | ~2,500,000 hours |
| Power | ~23 W active, ~5 W idle |
| Latency | Read ~60 µs, Write ~7 µs |
| Usage | Enterprise / Servers / Data centers |
