SAT5220-960G Synology Enterprise 960 GB SATA 6Gb/s Solid State Drives
SAT5220-960G Overview

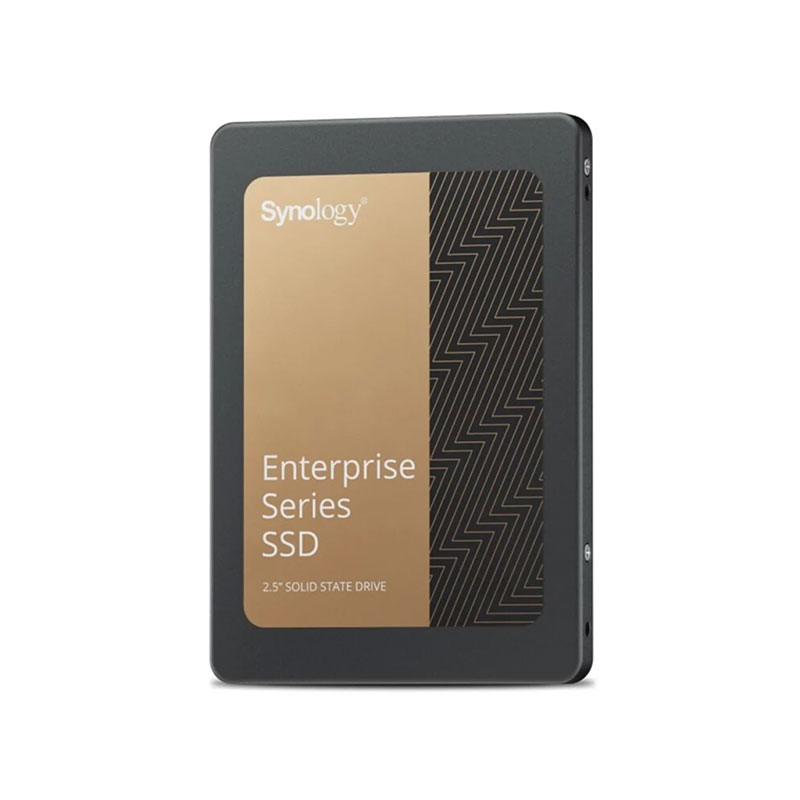

The Synology SAT5220‑960G is a 960 GB enterprise‑class internal solid‑state drive (SSD) built for 24×7 professional use in NAS systems, servers, and business storage applications that utilize the SATA 6 Gb/s (SATA III) interface. It comes in a standard 2.5‑inch, 7 mm form factor, making it broadly compatible with enterprise and NAS enclosures that support SATA drives.
This SSD delivers SATA‑level performance, with sustained sequential read speeds up to about 530 MB/s and write speeds around 500 MB/s, which are near the maximum limits of the SATA interface. It also offers strong random I/O performance, such as up to 98,000 IOPS for 4 KB random reads and 44,000 IOPS for 4 KB random writes.
$649.00
Shipping calculated at checkout.
SAT5220-960G Technical Specifications
Synology Enterprise 960 GB SATA 6Gb/s Solid State Drives
| Type | Hard Drive – Internal |
|---|---|
| Capacity | 960 Gb |
| Form Factor | 2.5 7mm |
| Interface | Sata 6gb/s |
| Dimensions | 7 Mm X 69.85 Mm X 100 Mm |
Performance
| Sustained Sequential Read | 530 Mb/s |
|---|---|
| Sustained Sequential Write | 500 Mb/s |
| Sustained Random Read | 98,000 Iops |
| Sustained Random Write | 44,000 Iops |
Endurance And Reliability
| Terabytes Written Tbw | >1,700 Tb |
|---|---|
| Mean Time Between Failures (mtbf) | 1,500,000 Hours |
| Uncorrectable Bit Error Rates (uber) | <1 Sector Per 1017 Bits Read |
| Power Loss Protection | Yes |
Power Consumption
| Active Read | 2.3 W |
|---|---|
| Active Write | 3.2 W |
| Idle | 1.3 W |
