RBwAPR-2nD&R11e-LR9 MikroTik 902-928 MHz 2.4 GHz
RBwAPR-2nD&R11e-LR9 Overview

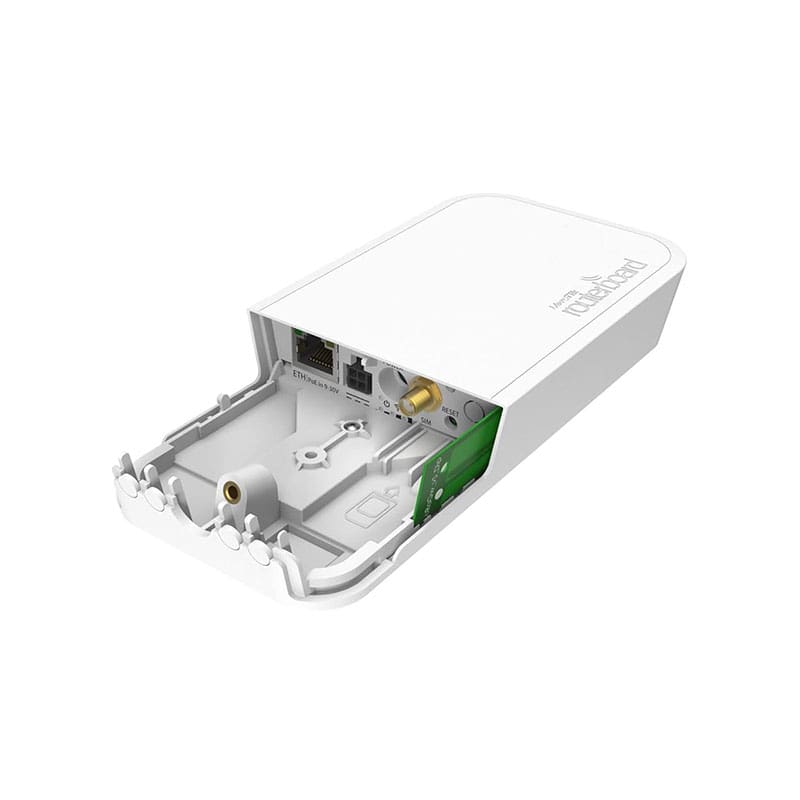

MikroTik R11e-LoRa9 and wAP LoRa9 kit supports 902-928 MHz 2.4 GHz WLAN interface. wAP LR9 kit also known as an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.
$206.00
Shipping calculated at checkout.
RBwAPR-2nD&R11e-LR9 Technical Specification
MikroTik R11e-LoRa9 and wAP LoRa9 kit supports 902-928 MHz 2.4 GHz WLAN interface
| Manufacturer | MikroTik |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| License level | 4 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 60°C |
Powering
| PoE in | Passive PoE |
|---|---|
| PoE in input Voltage | 9-30 V |
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage | 9-30 V |
| Automotive input Voltage | 9-30 V |
| Max power consumption | 7 W |
Wireless
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| 10/100 Ethernet ports | 1 |
|---|
Peripherals
| Number of SIM slots | 1 Modem (Mini SIM) |
|---|---|
| MiniPCI-e slots | 1 |
Other
| PCB temperature monitor | Yes |
|---|---|
| Voltage Monitor | Yes |
