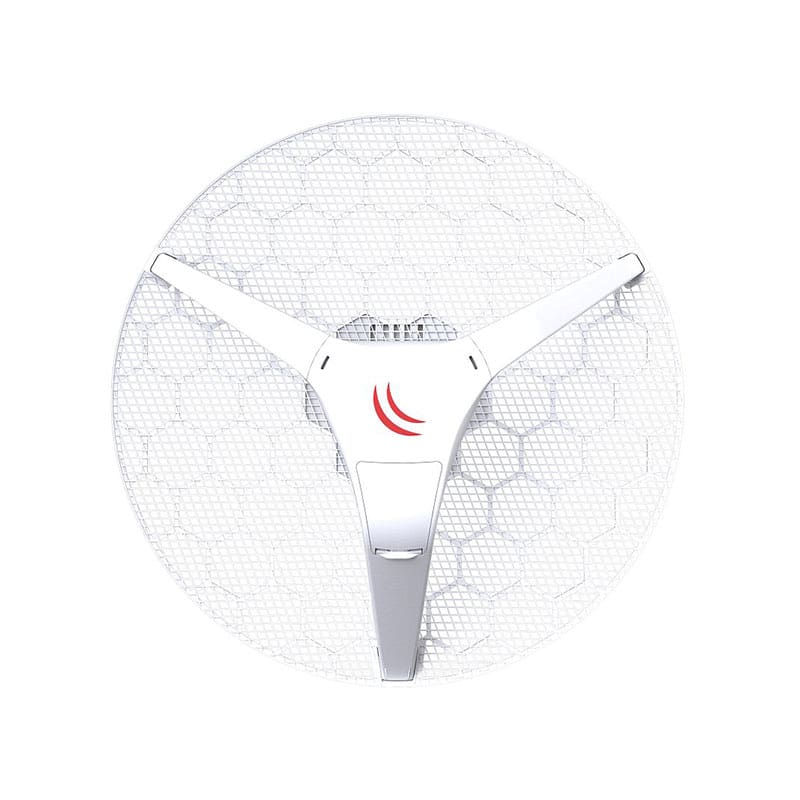

RBLHGG-5acD-XL4pack MIKROTIK LHG series 5 GHz Antenna,4 pack
RBLHGG-5acD-XL4pack Overview
MIKROTIK LHG series LHG XL 5 ac 5 GHz CPE/Point-to-Point Integrated Antenna,4 pack. The LHG XL 5 ac is Long Range 5GHz 802.11ac wireless device with an integrated dual polarization 27 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
$594.00
Shipping calculated at checkout.
RBLHGG-5acD-XL4pack Technical Specification
MIKROTIK LHG series LHG XL 5 ac 5 GHz CPE/Point-to-Point Integrated Antenna,4 pack
| Manufacturer | MikroTik |
|---|---|
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | Ø 550 x 245 mm; package 585 x 595 x 138 mm |
| Operating System | RouterOS (License level 3) |
| Weight | unit – 945 g; package – 2.99 kg |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +70°C |
| Wind loading | 186N @ 205 km/h |
Powering
| Max Power consumption | 8W |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
Wireless
| Wireless 5 GHz number of chains | 2 |
|---|---|
| Wireless 5 GHz standards | 802.11ac |
| Antenna gain dBi for 5 GHz | 27 +/- 0.5 |
| Antenna beam width | 7° |
| Wireless 5 GHz chip model | IPQ-4018 |
Ethernet
| 10/100/1000 Ethernet ports | 1 |
|---|
