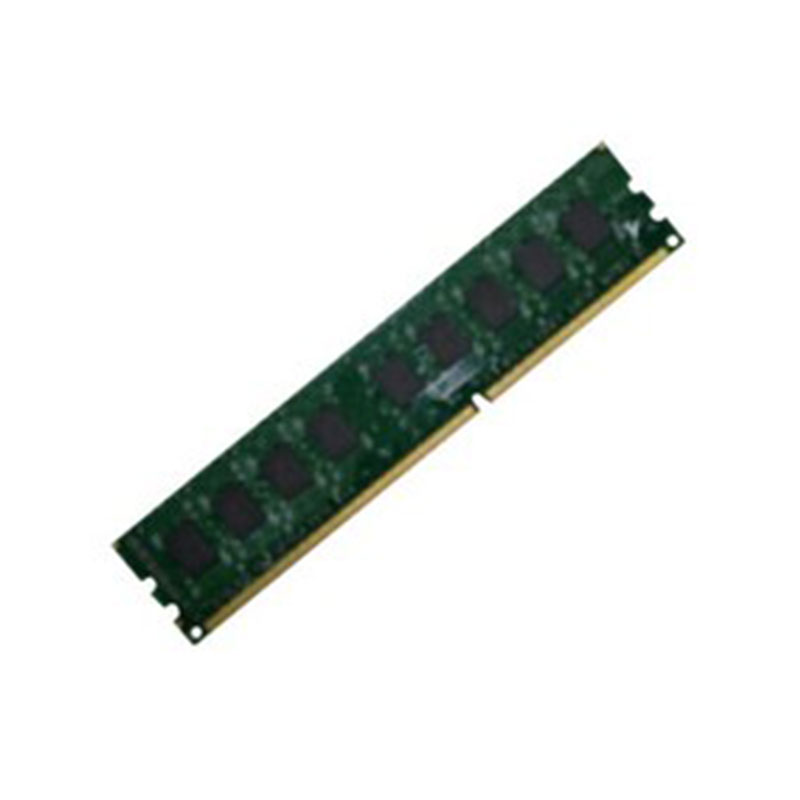

RAM-64GDR4ECS0-LR-2400 QNAP 64GB DDR4-2400MHz Memory Module
RAM-64GDR4ECS0-LR-2400 Overview
The QNAP RAM-64GDR4ECS0-LR-2400 is an industrial-grade 64GB memory module specifically engineered for high-end enterprise NAS systems and high-density server environments. Operating at 2400MHz (PC4-19200), it provides massive data throughput capabilities for high-demand applications such as massive virtualization, 4K video transcoding, and large-scale database management.
The standout technical feature of this module is its Load Reduced DIMM (LRDIMM) architecture. While standard registered memory (RDIMM) reduces the electrical load on the command and address lines, an LRDIMM takes this a step further by using a buffer chip to also reduce the load on the data lines.
$1,350.00
Shipping calculated at checkout.
RAM-64GDR4ECS0-LR-2400 Technical Specifications
QNAP 64GB PC4-19200 DDR4-2400MHz ECC Registered CL17 288-Pin Load Reduced DIMM 1.2V Quad Rank Memory Module
| Manufacturer | QNAP |
|---|---|
| Part Number | RAM-64GDR4ECS0-LR-2400 |
| Capacity | 64 GB |
| Memory Type | DDR4 SDRAM |
| Module Type | 288-Pin LRDIMM |
| Bus Speed | 2400 MHz (PC4-19200) |
| Data Transfer Rate | 19.2 GB/s |
| CAS Latency | CL17 |
| Error Correction | ECC (Error Correcting Code) |
| Signal Processing | Load Reduced (LRDIMM) |
| Rank Architecture | Quad Rank (4Rx4) |
| Operating Voltage | 1.2V |
| Form Factor | Standard DIMM Height |
| Contact Pins | 288-Pin Gold-Plated |
| Standard | JEDEC compliant |
