QSFPP-40GBASE-LR4 Technical Specifications

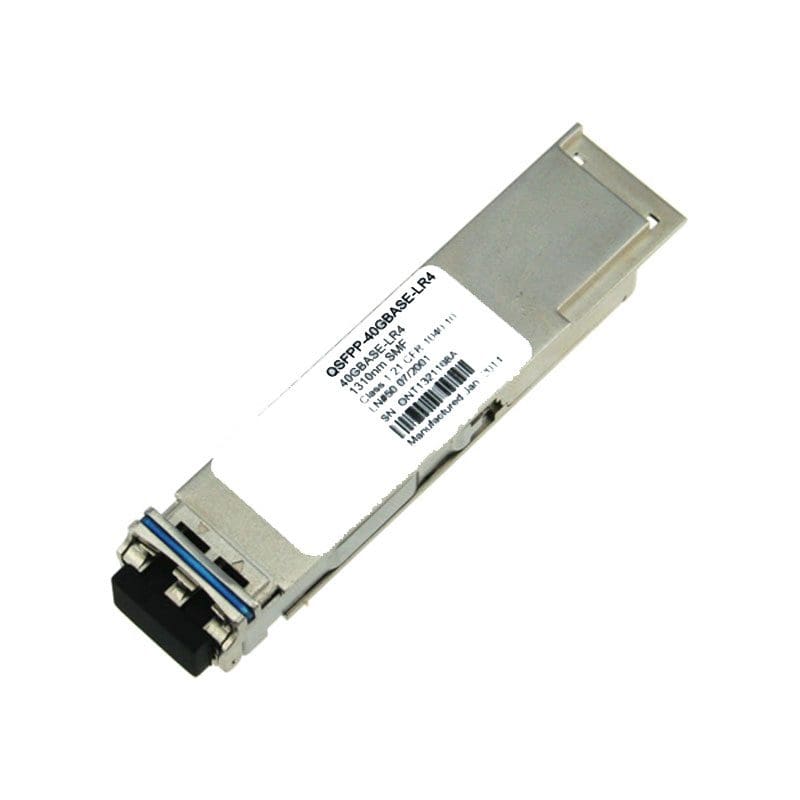

Juniper Networks One 40GBASE LR4 QSFP+ Pluggable Module
| Manufacturer | Juniper Networks, Inc |
|---|---|
| Manufacturer Part Number | QSFPP-40GBASE-LR4 |
| Brand Name | Juniper |
| Product Name | QSFP Module |
| Product Type | QSFP |
Technical Information
| Application/Usage | Data Networking, Optical Network |
|---|
Interfaces/Ports
| Interfaces/Ports Details | 1 x 40GBase-LR4 Network |
|---|
Media & Performance
| Media Type | Supported Optical Fiber |
|---|---|
| Fiber Optic Cable Standard | 9/125 µm |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 40 Gigabit Ethernet |
| Network Technology | 40GBase-LR4 |
| Maximum Data Transfer Rate | 40 |
Miscellaneous
Compatibility
Juniper Networks Products
- MIC Modules
- T640 Routers
- T1600 Routers
- PTX Series Packet Transport Switches
Standard: 40GBASE-LR4
| Transmitter | wavelengths (range) |
|---|
- 1264.5 nm through 1277.5 nm
- 1284.5 nm through 1297.5 nm
- 1304.5 nm through 1317.5 nm
| Transmitter output power, each lane (minimum) | –7 dBm |
|---|---|
| Transmitter output power, each lane (maximum) | 2.3 dBm |
| able type | SMF |
