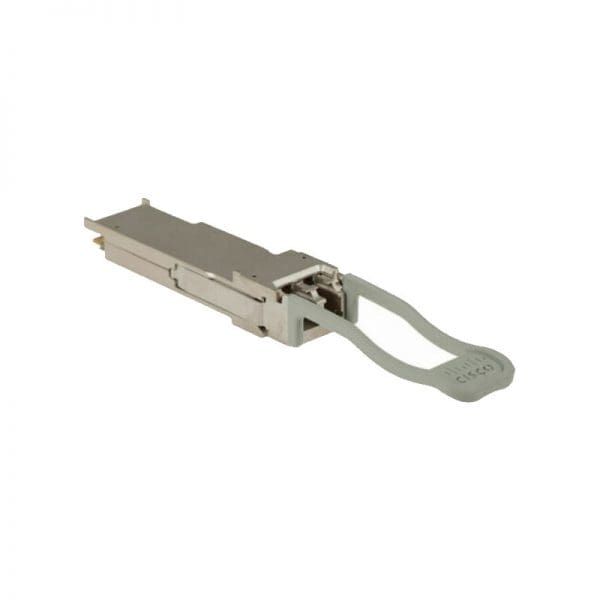

QSFP-40G-SR Alcatel-Lucent four channel 40 Gigabit Optical Transceiver
QSFP-40G-SR Overview
Alcatel-Lucent four channel 40 Gigabit Optical Transceiver (QSFP+). Supports link lengths of 100m and 150m, respectively, on OM3 and OM4 multimode fiber cables
$1,695.00
Shipping calculated at checkout.
QSFP-40G-SR Technical Specifications
Alcatel-Lucent four channel 40 Gigabit Optical Transceiver
| Manufacturer | Alcatel-Lucent |
|---|---|
| Form Factor | QSFP Plus |
| Data Rate | 40Gb/s |
| Wavelength | 850nm |
| Connector | MPO/MTP Connector |
| Cable Type | MMF |
| Reach Distance | 100M~OM3, 150M~OM4 |
| Operating Temperature Range | 0 ºC to 70ºC |
| Digital Optical Monitoring (DOM) | Supported |
| Applications | 40GBase-SR4 |
| Brand Name | Alcatel-Lucent |
| Product Type | QSFP+ |
Technical Information
| Application/Usage | Data Networking |
|---|---|
| Optical Network | |
Interfaces/Ports
| Interfaces/Ports Details | 1 x MPO 40GBase-SR4 Network |
|---|
Media & Performance
| Media Type Supported | Optical Fiber |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 40GBase-SR4 |
