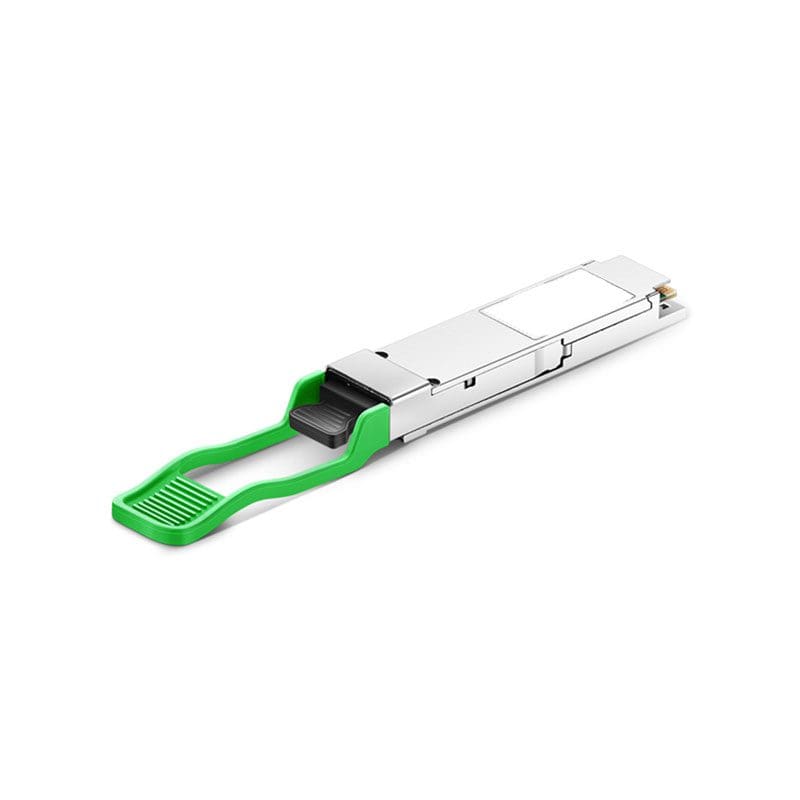

QSFP-100G-CWDM4-ET Technical Specifications
Juniper Networks Extended Temperature Capable 100GE CWDM4 Optics Upto 85C
| Product Name | Extended Temperature Capable 100GE CWDM4 Optics Upto 85C |
|---|---|
| Manufacturer Part Number | QSFP-100G-CWDM4-ET |
| Product Type | Expansion Module |
| Ethernet Technology | 100 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Network Technology | 100GBase-CWDM4 |
| Environmentally Friendly | Yes |
| Interfaces / Ports Details | 1 x 100GBase-CWDM4 Network |
| Digital Diagnostic Monitoring | Transceiver Temperature, Transceiver Supply Voltage, Tx Bias Current, Tx output power, Rx received optical power |
| Transmitter fibers | 2 |
| Transmitter wavelengths (range) | 1264.5 nm to 1277.5 nm, 1284.5 nm to 1297.5 nm, 1304.5 nm to 1317.5 nm, 1324.5 nm to 1337.5 nm |
| Receive lane wavelengths (range) | 1264.5 nm to 1277.5 nm, 1284.5 nm to 1297.5 nm, 1304.5 nm to 1317.5 nm, 1324.5 nm to 1337.5 nm |
