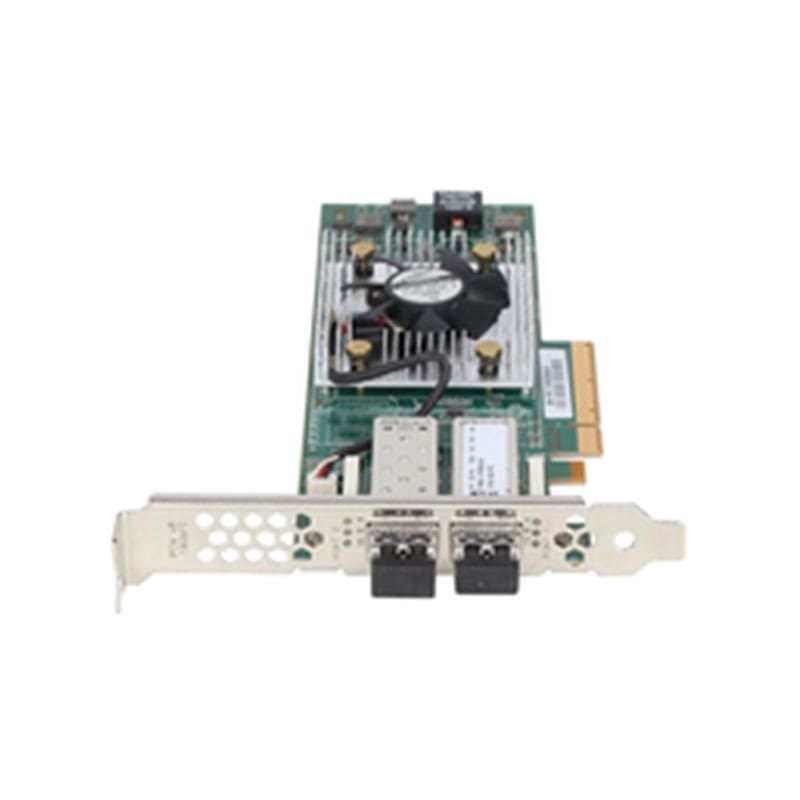

QLE2662-IBM Technical Specifications
IBM 16 Gigabyte(GB) Dual Port Peripheral Component Interconnect Express (PCI-E) X 8 Fibre Channel Host Bus Adapter For System X
| Manufacturer | IBM |
|---|---|
| Part Number or SKU# | QLE2662-IBM |
| Device Type | Host Bus Adapter |
| Form Factor | Plug-in Card |
Technical Information for IBM PCI-E Adapter
| Interface (bus) Type | Pci Express 2.0 X8 Or Pci Express 3.0 X4 (physical Connector Is Pcie X8) |
|---|---|
| Ports | 16gb Fibre Channel X 2 |
| Interfaces | 2 X 16gb Fibre Channel |
| Connectivity Technology | Wired |
| Data Rate | 14.025 Gbps (1600 Mbps), 8.5 Gbps (800 Mbps), And 4.25 Gbps (400 Mbps)autosensing (per Port), With Full Duplex |
| Performance | Over 1,200,000 Iops Per Dual-port Adapter |
| Throughput | 3,200 Mb Per Port, Full-duplex |
| Topology | Point-to-point And Switched Fabric |
