QFX5220-32CD-D-AFO Technical Specifications

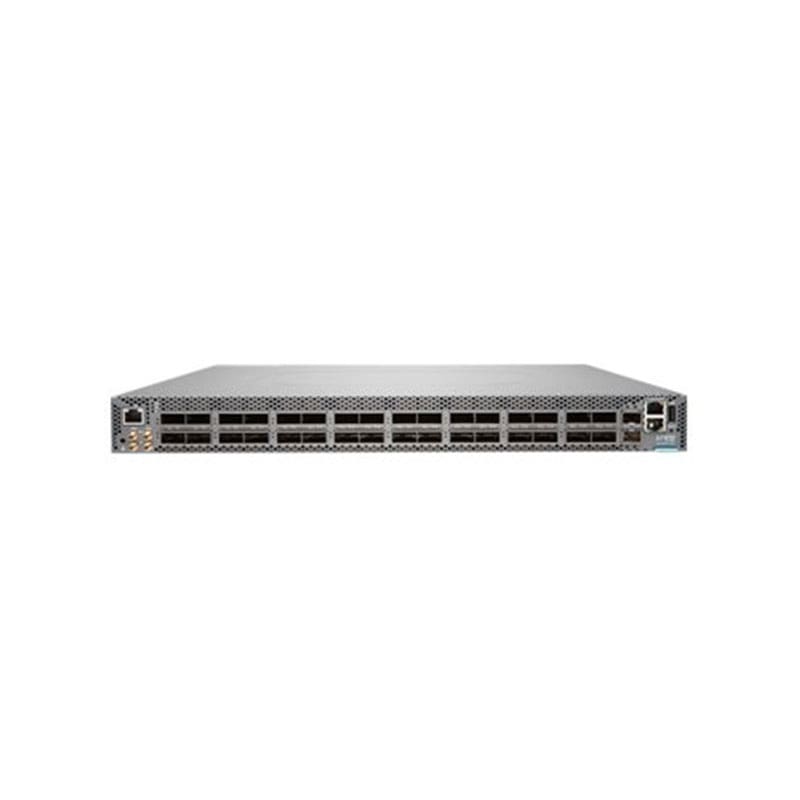

Juniper Networks QFX Series QFX5220-32CD Switch 32 ports Managed Rack-mountable
| Device Type | Switch – 32 ports – L3 – managed |
|---|---|
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 400 Gigabit Ethernet |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 9216 bytes |
| Processor | 1 x Intel Xeon D-1518 |
Expansion / Connectivity
Power
| Power Device | Internal power supply – hot-plug |
|---|---|
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1, 2N |
| Power Provided | 1600 Watt |
| Voltage Required | DC -48 -72 V |
| Power Consumption Operational | 958 Watt |
- 80 PLUS Certification
- 80 PLUS Silver
Miscellaneous
Software / System Requirements
| Software Included | Junos OS |
|---|
Dimensions & Weight
| Width | 17.2 in |
|---|---|
| Depth | 21.1 in |
| Height | 1.7 in |
| Weight | 24.49 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 104 °F |
