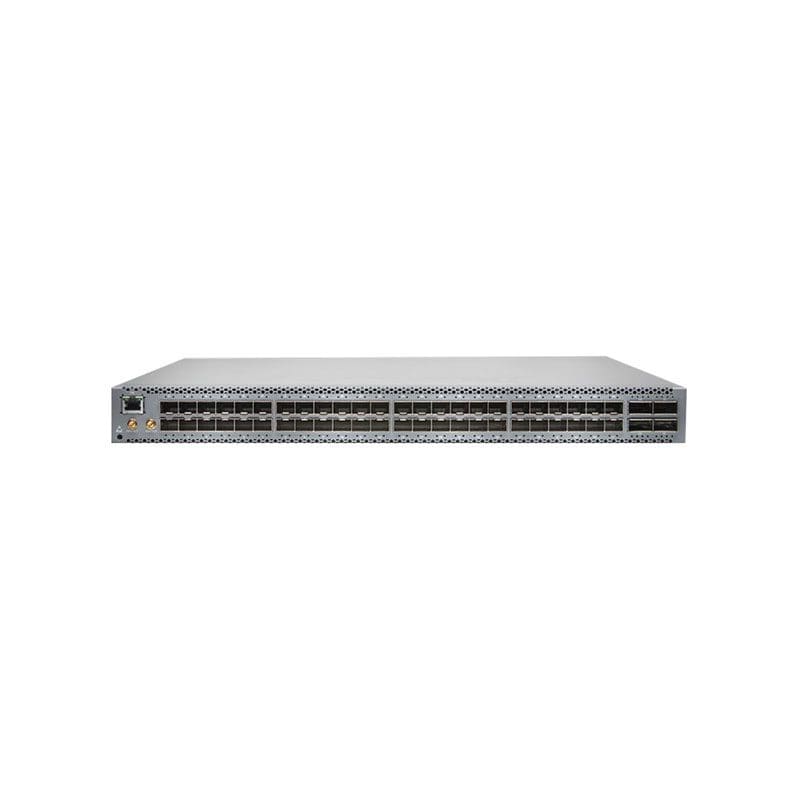

QFX5110-48S-AFO Juniper QFX Series QFX5110-48S switch

Brand:

QFX5110-48S-AFO Overview

A 10GbE/100GbE data center access switch, the QFX5110-48S offers 48 small form-factor pluggable plus (SFP+) transceiver ports and four QSFP28 ports, that can be configured as 4x40GbE or 4x100GbE ports, with a high aggregate throughput per switch

$8,315.00

Shipping calculated at checkout.
or
SKU: QFX5110-48S-AFO Categories: Brand:

QFX5110-48S-AFO Technical Specifications

Juniper Networks QFX Series QFX5110-48S switch 48 ports managed rack mountable

Manufacturer Netscreen
Brand Juniper, Juniper Networks
Product Line Juniper Networks QFX Series
Model QFX5110-48S
Packaged Quantity :1

Chassis

Airflow Direction Front to back airflow

Performance

Performance :Switching capacity 1.32 Bpps, Switching capacity: 1.76 Tbps

Capacity

Capacity :LAG groups 104, IPv4 routes (Unicast): 128000, IPv4 routes (Multicast): 104000, Firewall ingress filters: 6142, IPv6 routes (Unicast): 84000, MAC address entries: 288000, VLAN IDs: 4093, QoS hardware queues per port: 12, IPv6 routes (Multicast): 52000, Jumbo frame size: 9216, MSTP instances: 64, ARP entries: 48000, Maximum member ports per LAG: 32, VSTP instances: 253, Firewall egress filters: 1022

Networking

Type Switch
Subcategory Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor Rack-mountable
Ports Qty :48
