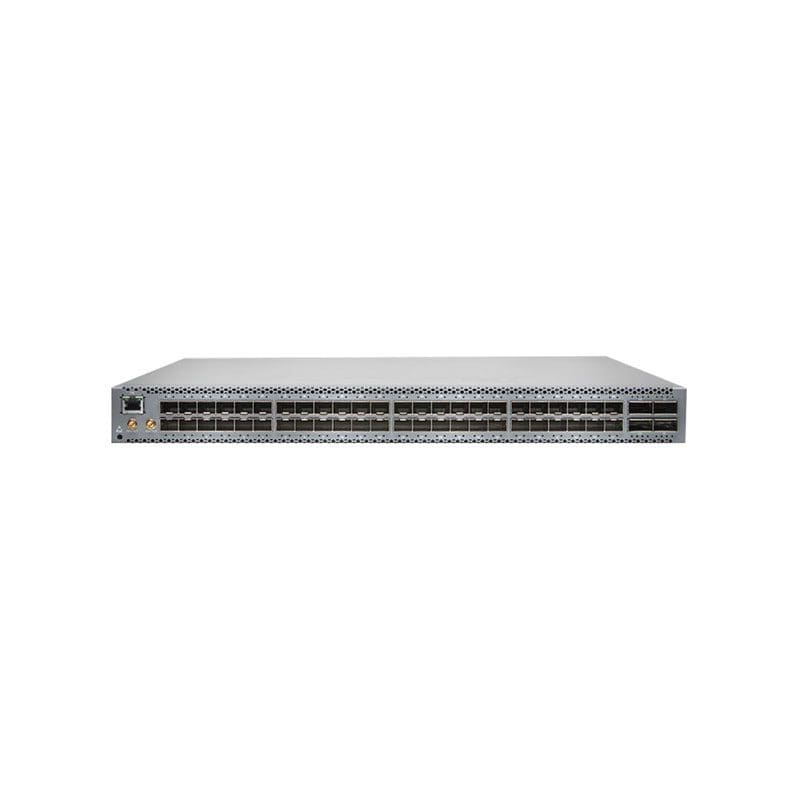

Refurbished QFX5110-48S-AFO-T Juniper Networks QFX Series
Refurbished QFX5110-48S-AFO-T Overview
A 10GbE/100GbE data center access switch, the QFX5110-48S offers 48 small form-factor pluggable plus (SFP+) transceiver ports and four QSFP28 ports, that can be configured as 4x40GbE or 4x100GbE ports, with a high aggregate throughput per switch. For added flexibility, each QSFP28 port can also be configured as 4x10GbE ports, using breakout cables, increasing the total number of supported 10GbE ports to 64 per switch.
$8,185.00
Shipping calculated at checkout.
Refurbished QFX5110-48S-AFO-T Technical Specifications
Juniper Networks QFX Series QFX5110-48S switch 48 ports managed rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks QFX Series |
| Model | QFX5110-48S |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Front to back airflow |
|---|
Performance
| Performance :Switching capacity | 1.32 Bpps, Switching capacity: 1.76 Tbps Capacity |
|---|---|
| Capacity :QoS hardware queues per port | 12, Maximum member ports per LAG: 32, MSTP instances: 64, IPv4 routes (Unicast): 128000, Firewall ingress filters: 6142, LAG groups: 104, VSTP instances: 253, IPv6 routes (Unicast): 84000, VLAN IDs: 4093, MAC address entries: 288000, IPv4 routes (Multicast): 104000, IPv6 routes (Multicast): 52000, Jumbo frame size: 9216, ARP entries: 48000, Firewall egress filters: 1022 |
Networking
| Type | Switch |
|---|---|
| Subcategory | Network hubs and switches |
| Subtype | :10 Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Ports Qty | :48 |
| Advanced Switching | Layer 3 |
| Routing Protocol | IGMP, Static IP routing, OSPF, IS-IS, RIP, VRRP, IGMPv2, BGP, IGMPv3 |
| MAC Address Table Size | :288K entries |
| Jumbo Frame Support | :9216 bytes |
| Manageable | Yes |
| Remote Management Protocol | TFTP, SNMP 2, CLI, SNMP 1, SNMP 3, Telnet |
| Features | Weighted Random Early Detection (WRED), IGMP snooping, Bidirectional Forwarding Detection (BFD), Spanning Tree Protocol (STP) support, Port filtering, Hot swappable fan, Cut-through, sFlow v5, Data Center Bridging (DCB), Dynamic ARP Inspection (DAI), High Availability, Multicast Source Discovery Protocol (MSDP), VLAN support, Port mirroring, Uplink Failure Detection (UFD), Quality of Service (QoS), IP source guard, VLAN filtering, Proxy ARP, Management Information Base (MIB), DHCP snooping, DHCP relay, Redundant fans, VLAN Spanning Tree Protocol (VSTP), Redundant trunk group (RTG), PIM-SM snooping, Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Private VLAN, Front to back airflow, Multiple Spanning Tree Protocol (MSTP) support, Store and forward, Routed VLAN Interface (RVI), Smoothed Deficit Weighted Round Robin (SDWRR), Loop prevention, Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), FCoE support, Data Center Bridging Exchange (DCBX) support, Bridge protocol data unit (BPDU), MPLS support, IGMP filtering |
| Compliant Standards | IEEE 802.1w, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ad, IEEE 802.11, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.1Qaz, IEEE 802.1s, IEEE 802.3x |
Ports
| Qty | :48 |
|---|---|
| Type | :1 Gigabit / 10 Gigabit SFP+ |
| Ports | (2nd) |
| Qty | :4 |
| Type | :40 Gigabit / 100 Gigabit QSFP28 |
Interface Provided
| Interfaces | :2 x management, 48 x 1/10Gbit LAN SFP+, 1 x USB 2.0, 1 x serial (RS-232), 4 x 100Gbit/40Gbit LAN QSFP28/QSFP+ |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | :1+1 |
| Installed Qty | :2 |
| Max Supported Qty | :2 |
| Nominal Voltage | AC 120/230 V |
| Power Consumption Operational | :195 watt |
| 80 PLUS Certification | :80 PLUS Silver |
Miscellaneous
| Color Category | Gray |
|---|---|
| TAA Compliant | Yes |
| Rack Mounting Kit | Included |
| Height (Rack Units) | :1 |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), TACACS+, Secure Shell (SSH) |
| Compliant Standards | AS/NZS CISPR 22, AS/NZS CISPR 32, UL 60950-1, WEEE, EN 55032 Class A, CAN/CSA-C22.2 No. 60950-1, China RoHS, CISPR 24, VCCI Class A, EN 300 386, EN 60825-1, ICES-003 Class A, FCC CFR47 Part 15 A, RoHS, EN55024, EN 55022 Class A, IEC 60950-1, GR-1089-CORE, CISPR 22 Class A, BSMI CNS 13438, GR-63-CORE, REACH, CISPR 32 Class A |
Dimensions & Weight
| Width | :17.4 inch |
|---|---|
| Depth | :20.5 inch |
| Height | :1.7 inch |
| Weight | :22.99 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Max Storage Temperature | :158 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% (non-condensing) |
| Humidity Range Storage | :0 – 95% (non-condensing) |
