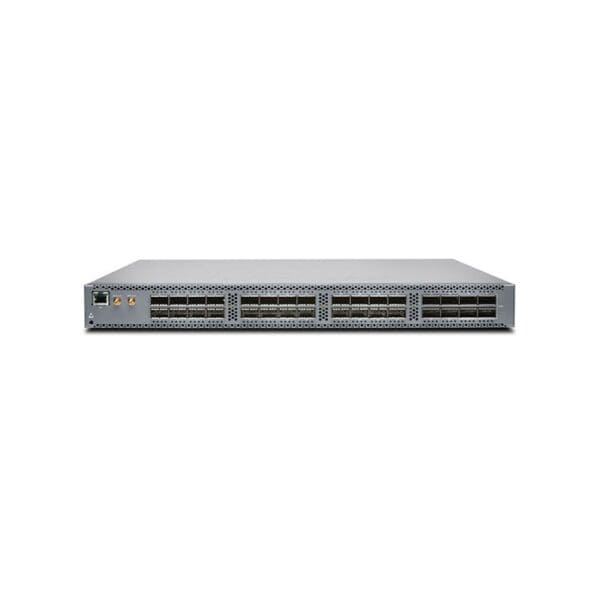

Refurbished QFX5110-32Q-DC-AFO Juniper QFX5110-32Q
Refurbished QFX5110-32Q-DC-AFO Overview
The ports on the QFX5110-32Q support 40-Gbps or 100-Gbps speeds natively. Of the 28 QSFP+ ports, 0 through 19also support 10-Gbps speeds when the ports are configured as Flexi-pic and channelized using QSFP+ to SFP+ DAC breakout (DACBO) cables. Although all network ports can be configured as either uplink or as access ports, best practice is to configure the four QSFP28 ports (28 through 31) as uplinks to take advantage of the 100-Gbps speeds.
$5,009.00
Shipping calculated at checkout.
Refurbished QFX5110-32Q-DC-AFO Technical Specifications
Juniper QFX5110-32Q Ethernet Switch
General Information
| Manufacturer | Juniper Networks, Inc |
|---|---|
| Manufacturer Part Number | QFX5110-32Q-DC-AFO |
| Manufacturer Website Address | http://www.juniper.net |
| Brand Name | Juniper |
| Product Series | QFX |
| Product Model | QFX5110-32Q |
| Product Name | QFX5110-32Q Ethernet Switch |
| Product Type | Ethernet Switch |
Technical Information
Interfaces/Ports
| Modular | Yes |
|---|---|
| Port/Expansion Slot Details | 28 x 10 Gigabit Ethernet Expansion Slot, 4 x 100 Gigabit Ethernet Expansion Slot |
Media & Performance
| Media Type Supported | Optical Fiber |
|---|---|
| Ethernet Technology | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Network Technology | 10GBase-X, 100GBase-X |
I/O Expansions
| Number of Total Expansion Slots | 32 |
|---|---|
| Expansion Slot Type | QSFP28, QSFP+ |
| Shared SFP Slot | No |
Management & Protocols
| Manageable | Yes |
|---|
Power Description
| Power Source | Power Supply |
|---|
Physical Characteristics
| Height | 1.7″ |
|---|---|
| Width | 17.4″ |
| Depth | 20.5″ |
| Weight (Approximate) | 24.60 lb |
Miscellaneous
| Environmentally Friendly | Yes |
|---|---|
| Environmental Certification | WEEE, China RoHS, REACH, RoHS, Green Dot |
