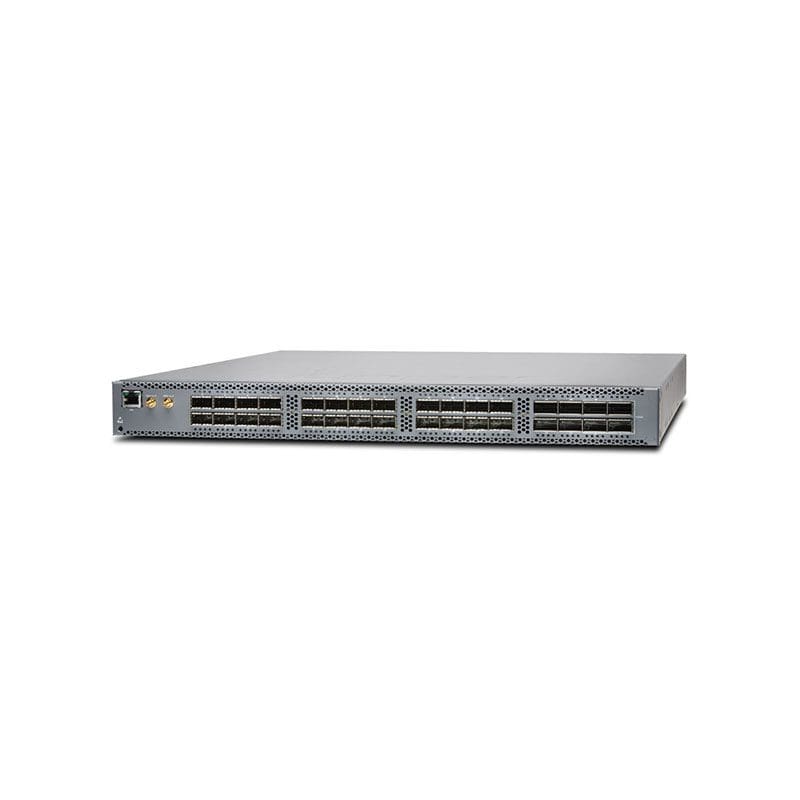

QFX5110-32Q-DC-AFI Technical Specifications
Juniper Networks 32 QSFP+/20 QSFP+ QSFP28 Back to Front DC
| Dimensions |
(W x H x D) |
| Qfx5110-32Q |
17.36 x 1.72 x 20.48 in (44.09 x 4.37 x 52.02 cm); 1 U |
| Power |
options |
100 to 240 VAC (single phase) at 50/60 Hz or –36 to –72 VDC
System Throughput
| Qfx5110-32Q |
2.56 Tbps |
| Form |
Factor |
Fixed-configuration platform
| Data Rate |
(switching capacity) |
| Qfx5110-32Q |
1.44 Bpps |
| Port |
densities |
| Qfx5110-32Q |
104 10GbE (with breakout cable); 32 40GbE; 20 40GbE with 4 100GbE |
| Maximum |
10GbE Density |
| Qfx5110-32Q |
104 ports with breakout cable |
| Maximum |
25GbE / 50GbE Densities |
N / A
| Maximum |
40GbE Density |
| Qfx5110-32Q |
32 ports |
| Maximum |
100GbE Density |
| Qfx5110-48S / -32Q |
4 |
| Resiliency |
Dual hot-swappable AC or DC power supplies for 1 + 1 redundancy.
Power Consumption
