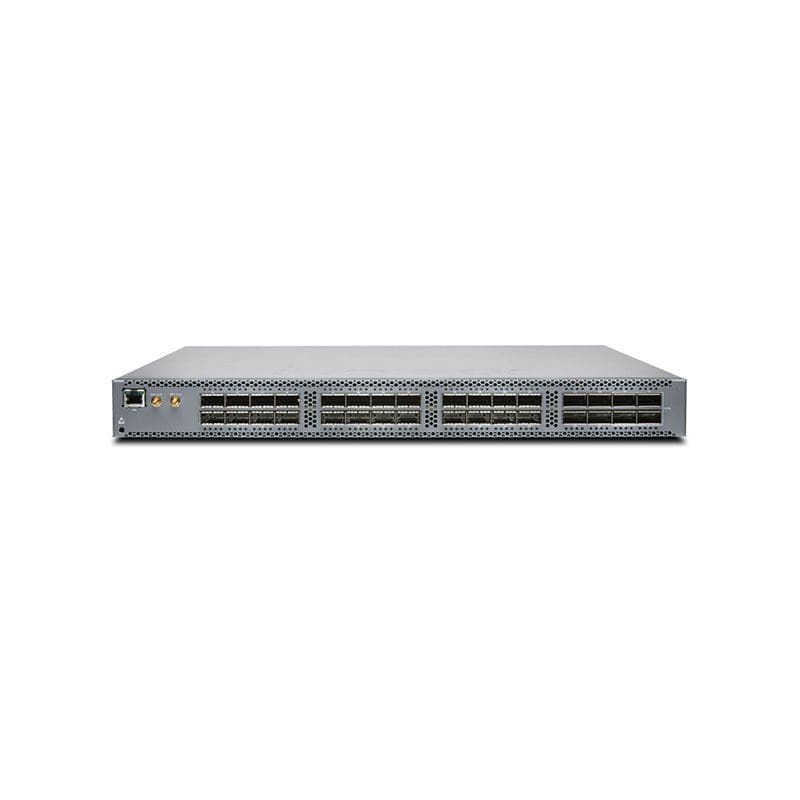

QFX5110-32Q-AFO Juniper QFX5110 32 Port Ethernet Switch

Brand:

QFX5110-32Q-AFO Overview

Juniper QFX5110 32 Port Ethernet Switch Expansion Slot.The ports on the QFX5110-32Q support 40-Gbps or 100-Gbps speeds natively. Of the 28 QSFP+ ports, 0 through 19also support 10-Gbps speeds when the ports are configured as Flexi-pic and channelized using QSFP+ to SFP+ DAC breakout (DACBO) cables. Although all network ports can be configured as either uplink or as access ports, best practice is to configure the four QSFP28 ports (28 through 31) as uplinks to take advantage of the 100-Gbps speeds.

$18,499.00

Shipping calculated at checkout.
or
SKU: QFX5110-32Q-AFO Categories: Brand:

QFX5110-32Q-AFO Technical Specifications

Juniper QFX5110 32 Port Ethernet Switch Expansion Slot

Manufacturer Netscreen
Brand Juniper, Juniper Networks
Product Line Juniper Networks QFX Series
Model QFX5110-32Q
Packaged Quantity :1

Chassis

Airflow Direction Front to back airflow
Built-in Devices :64 GB SSD

Processor

Installed Qty :1
Manufacturer Intel
Clock Speed :1.8 GHZ

RAM

Installed Size :16 GB

Performance

Performance :Switching capacity 2.56 Tbps, Switching capacity: 1.44 Bpps, Latency: 550 ns

Capacity

Capacity :ARP entries 48000, LAG groups: 104, Multiple Spanning Tree Protocol instances: 64, VLAN Spanning Tree Protocol instances: 253, VSTP instances: 253, Equal-Cost Multipathing (ECMP) ways: 64, IPv4 routes (Unicast): 128000, Maximum member ports per LAG: 32, Virtual interfaces (VLANs): 4093, IPv4 hosts: 208000, IPv6 routes (Unicast): 84000, IPv6 routes (Multicast): 52000, IPv4 routes (Multicast): 104000, QoS hardware queues per port: 12
