QFX5110-32Q-AFI Technical Specifications

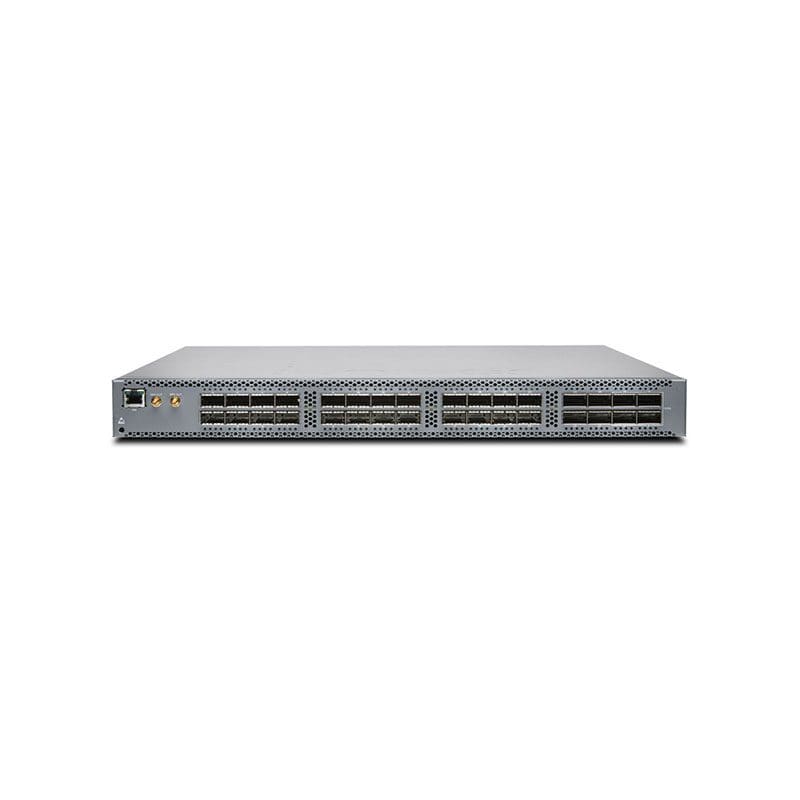

Juniper Networks QFX Series QFX5110-32Q switch 32 ports managed rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks QFX Series |
| Model | QFX5110-32Q |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Back to front airflow |
|---|---|
| Built-in Devices | :64 GB SSD |
Processor
| Installed Qty | :1 |
|---|---|
| Manufacturer | Intel |
| Clock Speed | :1.8 GHZ |
RAM
| Installed Size | :16 GB |
|---|
Performance
| Performance :Switching capacity | 2.56 Tbps, Latency: 550 ns, Switching capacity: 1.44 Bpps |
|---|
Capacity
| Capacity :IPv4 routes (Unicast) | 128000, VLAN Spanning Tree Protocol instances: 253, LAG groups: 104, Maximum member ports per LAG: 32, VSTP instances: 253, QoS hardware queues per port: 12, Multiple Spanning Tree Protocol instances: 64, Virtual interfaces (VLANs): 4093, IPv6 routes (Unicast): 84000, Equal-Cost Multipathing (ECMP) ways: 64, IPv4 routes (Multicast): 104000, IPv4 hosts: 208000, IPv6 routes (Multicast): 52000, ARP entries: 48000 |
|---|
