QFX5100-48S-AFI Technical Specifications

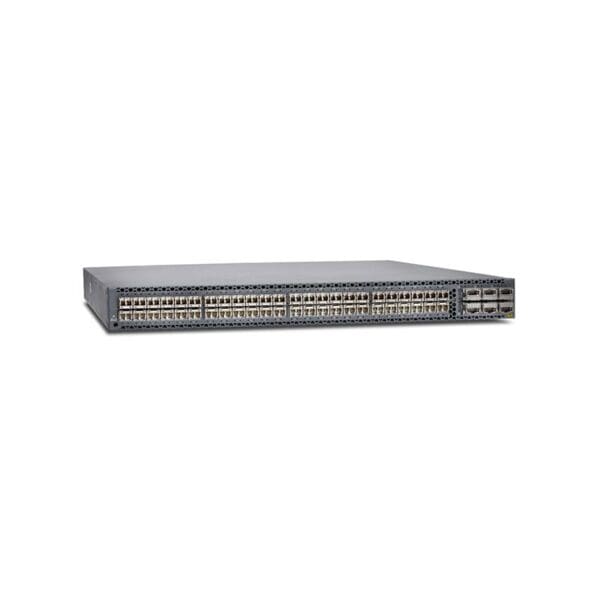

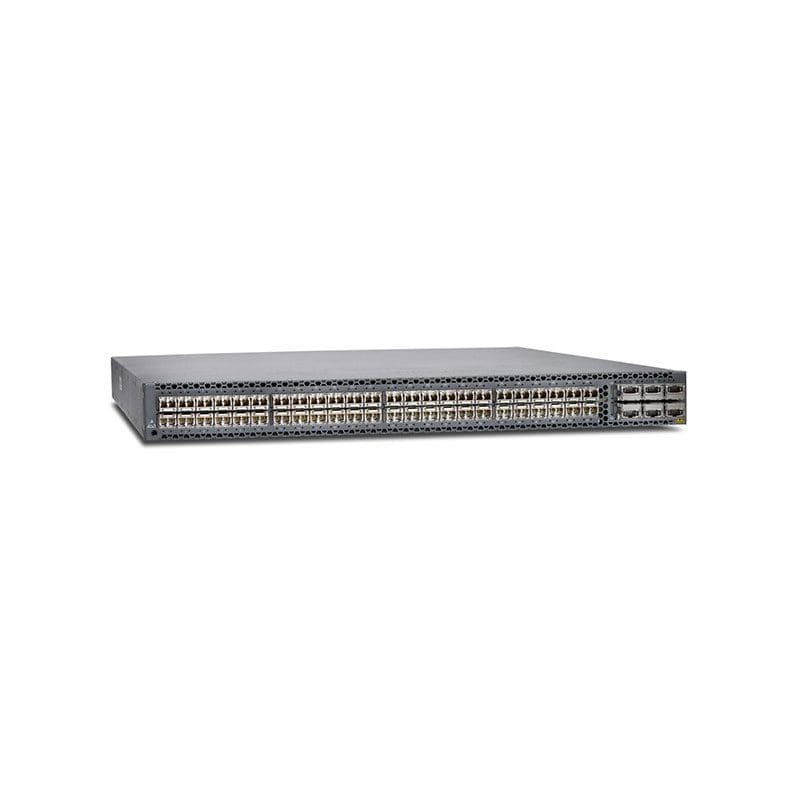

Juniper Networks QFX Series QFX5100-48S switch 48 ports managed rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks QFX Series |
| Model | QFX5100-48S |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Back to front airflow |
|---|---|
| Built-in Devices | :32 GB SSD |
Processor
| Installed Qty | :1 |
|---|---|
| Manufacturer | Intel |
| Clock Speed | :1.5 GHZ |
RAM
| Installed Size | :8 GB |
|---|
Performance
| Performance :Switching capacity | 1.44 Tbps, Switching capacity: 1.07 Bpps |
|---|
Capacity
| Capacity :Virtual interfaces (VLANs) | 4091, VLAN Spanning Tree Protocol instances: 253, IPv4 routes (Unicast): 128000, IPv6 routes (Multicast): 52000, IPv6 routes (Unicast): 64000, ARP entries: 48000, IPv4 hosts: 208000, IPv4 routes (Multicast): 104000, Multiple Spanning Tree Protocol instances: 64 |
|---|
Networking
| Type | Switch |
|---|---|
| Subcategory | Network hubs and switches |
| Subtype | :10 Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Ports Qty | :48 |
| Fibre Channel | FC-BB-6, FC-BB-5 |
| Advanced Switching | Layer 3 |
