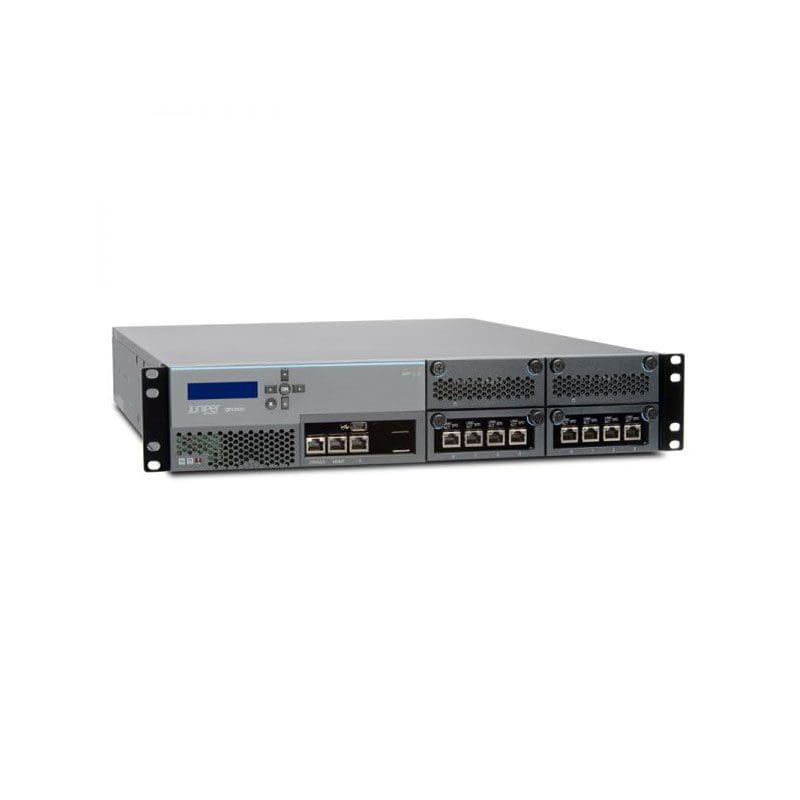

Refurbished QFX3100-GBE-ACR Juniper Networks QFX3100 router
Refurbished QFX3100-GBE-ACR Overview
Communicating directly with all QFabric Node and QFabric Interconnect devices, the QFX3100 Director builds a global view of the entire QFabric architecture, which can scale to support thousands of server-facing ports. Deployed in clusters, the QFX3100 provides network operators with a single point of visibility, control, provisioning, and management, presenting the entire data center network – built with QFabric Node and QFabric Interconnect devices – as a single switch. This dramatically reduces the operational costs typically associated with managing the complexities of today’s data center networks.
$730.00
Shipping calculated at checkout.
Refurbished QFX3100-GBE-ACR Technical Specifications
Juniper Networks QFX3100 router rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | QFX3100 |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Front to back airflow |
|---|---|
| Built-in Devices | RAID controller |
- Installed Devices / Modules Qty :4
- Supported Devices / Modules Qty :4
Processor
| Installed Qty | :2 |
|---|---|
| Manufacturer | Intel |
| Clock Speed | :2.1 GHZ |
RAM
| Installed Size | :36 GB |
|---|
Hard Drive
| Capacity | :4 TB |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Remote Management Protocol | SNMP 1, SNMP 2, SSH, CLI, SNMP 3 |
| Status Indicators | LCD display |
| Key Features | USB port |
| Features | Modular design, Redundant hot swappable fans, Front to back airflow |
Expansion Slots
| Expansion Slots | :2 (total) / 0 (free) x expansion slot |
|---|
Interface Provided
| Interfaces :USB | 1 x 4 pin USB Type A, Management: 2 x Ethernet – RJ-45, 8 x 1000Base-T – RJ-45, Management: 1 x console |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Power Redundancy | Yes |
| Installed Qty | :2 |
| Max Supported Qty | :2 |
| Power Provided | :560 watt |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
| Power Consumption Operational | :476 watt |
System Requirements
| OS Required | JUNOS |
|---|
Miscellaneous
| Rack Mounting Kit | Included |
|---|---|
| Height (Rack Units) | :2 |
| Mtbf | :96,125 Hours |
| Compliant Standards | CAN/CSA C22.2 No. 60950-1, EN 60825-1, RoHS 5/6, EN 60950-1, FCC CFR47 Part 15, EN55024, WEEE, UL 60950-1 Second Edition, EN300-386, IEC 60950-1, REACH, CISPR 22, VCCI Class A, EN55022 Class A, ErP Ready, BSMI CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :23.8 inch |
| Height | :3.5 inch |
| Weight | :41.2 lbs |
Environmental Parameters
| Min Operating Temperature | :41 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :8 – 90% (non-condensing) |
