QFX10002-72Q Technical Specifications

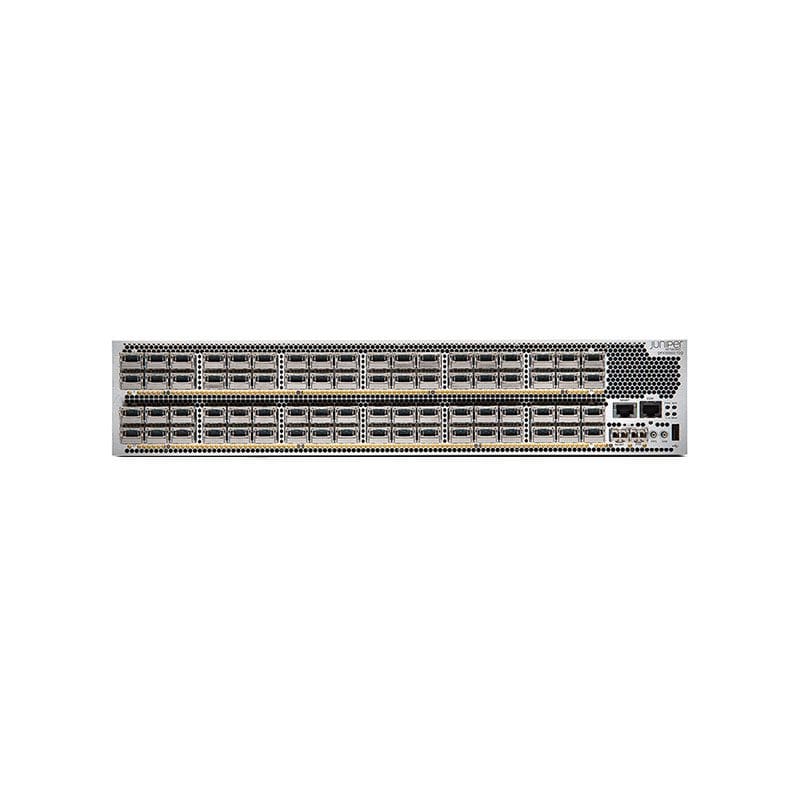

Juniper Networks QFX Series QFX10002-72Q switch 72 ports managed rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks QFX Series |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Front to back airflow |
|---|
Processor
| Installed Qty | :1 |
|---|---|
| Manufacturer | Intel |
| Clock Speed | :2.5 GHZ |
RAM
| Installed Size | :16 GB |
|---|
Performance
| Performance :Throughput | 5.76 Tbps, Forwarding performance: 2 Bpps |
|---|
Capacity
| Capacity :IPv4 routes | 2000000, Virtual interfaces (VLANs): 4000, IPv4 forwarding information base (FIB): 256000, IPv6 forwarding information base (FIB): 256000, ARP entries: 256000, IPv6 routes (Multicast): 128000, Virtual output queues: 384000, Equal-Cost Multipathing (ECMP) ways: 64, GRE tunnels: 4096, IPv6 routes: 2000000, IPv4 routes (Multicast): 128000, Queues per port: 8 |
|---|
Networking
| Type | Switch |
|---|---|
| Subcategory | Network hubs and switches |
| Subtype | :40 Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Ports Qty | :72 |
