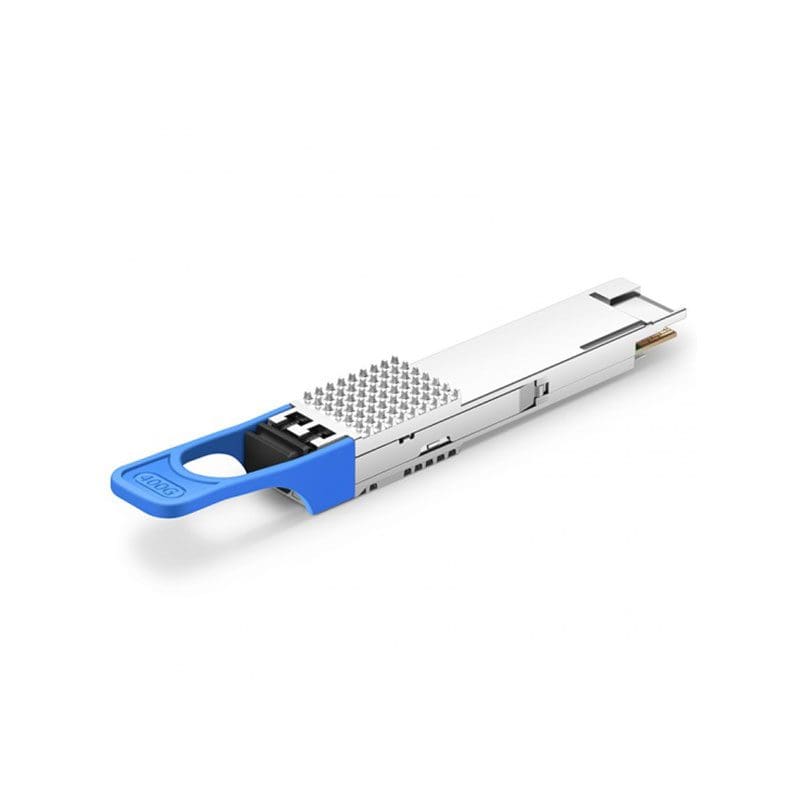

QDD-400G-LR8 Technical Specifications
Juniper Networks QSFP-DD Transceiver Module 400 Gigabit LAN
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper, Juniper Networks |
| Packaged Quantity | :1 |
Networking
| Type | QSFP-DD Transceiver Module |
|---|---|
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 400GBase-LR8 |
| Data Link Protocol | :400 Gigabit Ethernet |
| Data Transfer Rate | :400 GBps |
| Optical Wave Length | :1272.55 (TX) / 1310.19 (RX) nm |
| Max Transfer Distance | :6.2 |
| Features | Digital Diagnostics Monitoring (DDM), Digital Optical Monitoring (DOM) support |
| Connectors | (for SD) |
| Left Connector Type | :2 x LC single-mode |
Interface Provided
| Interfaces | :2 x Ethernet 400GBase-LR8 – LC single-mode |
|---|
Power Device
| Power Consumption Operational | :14 watt |
|---|
Miscellaneous
| Compliant Standards | MSA |
|---|
Dimensions & Weight
| Width | :0.7 inch |
|---|---|
| Depth | :3.7 inch |
| Height | :0.5 inch |
| Weight | :7.05 ounce |
