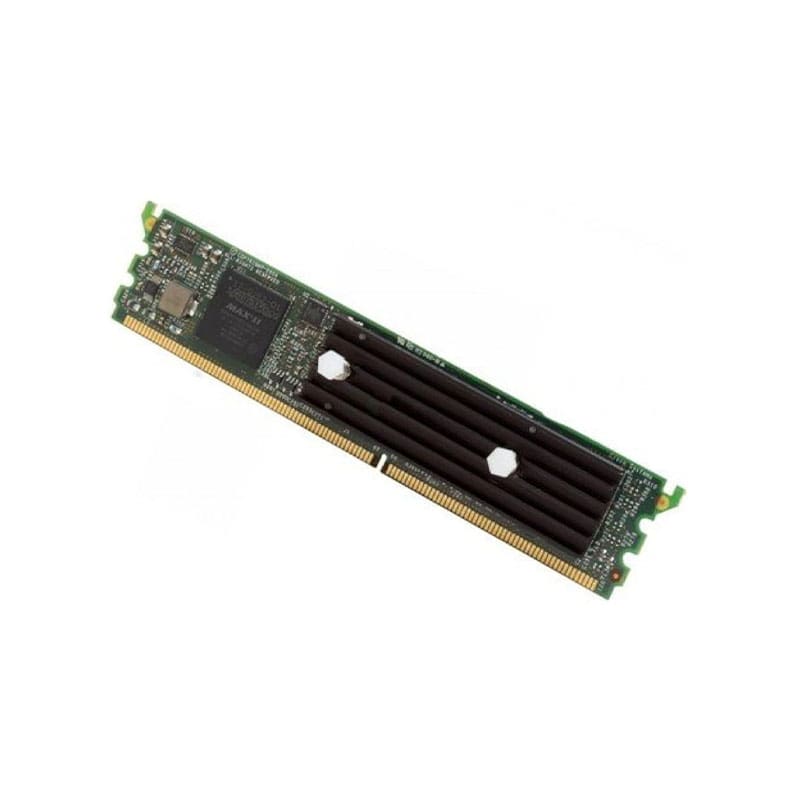

PVDM3-32U192 Cisco PVDM3 32 to 192 Channel Factory Upgrade voice DSP module DIMM 240-pin
PVDM3-32U192 Overview
This PVDM3 modules perform compression, voice-activity-detection, jitter-management, and echo-cancellation functions. The echo cancellation offered in the PVDM3 modules has a tail length of 128 milliseconds (ms) and complies with ITU-T G.168. This PVDM3 DSPs offer multiple power-saving modes, including a power-saver mode when the module is not in use. In power-saver mode each PVDM3 can save up to 5-watt of power
$4,068.00
Shipping calculated at checkout.
PVDM3-32U192 Technical Specifications
Cisco PVDM3 32 to 192 Channel Factory Upgrade voice DSP module DIMM 240-pin
| Brand | Cisco |
|---|---|
| Product Line | Cisco PVDM3 |
| Model | 32 to 192 Channel Factory Upgrade |
| Manufacturer | CISCO DS HARDWARE DIRECT |
Memory
| RAM Installed | 512 megabyte |
|---|
Network & Communication
| Bus Voltage | 3.3 V |
|---|---|
| Connectivity Technology | Wired |
| Form Factor | Plug-in module |
| Host Interface | DIMM 240-pin |
| Product Type | Voice DSP module |
Expansion Slots
| Compatible Slots Required | 1 x expansion slot – DIMM 240-pin |
|---|
Technical Information
| Max Operating Temperature | 131 degree Fahrenheit |
|---|---|
| Min Operating Temperature | 23 degree Fahrenheit |
Product Information
| Packaged Quantity | 1 |
|---|
