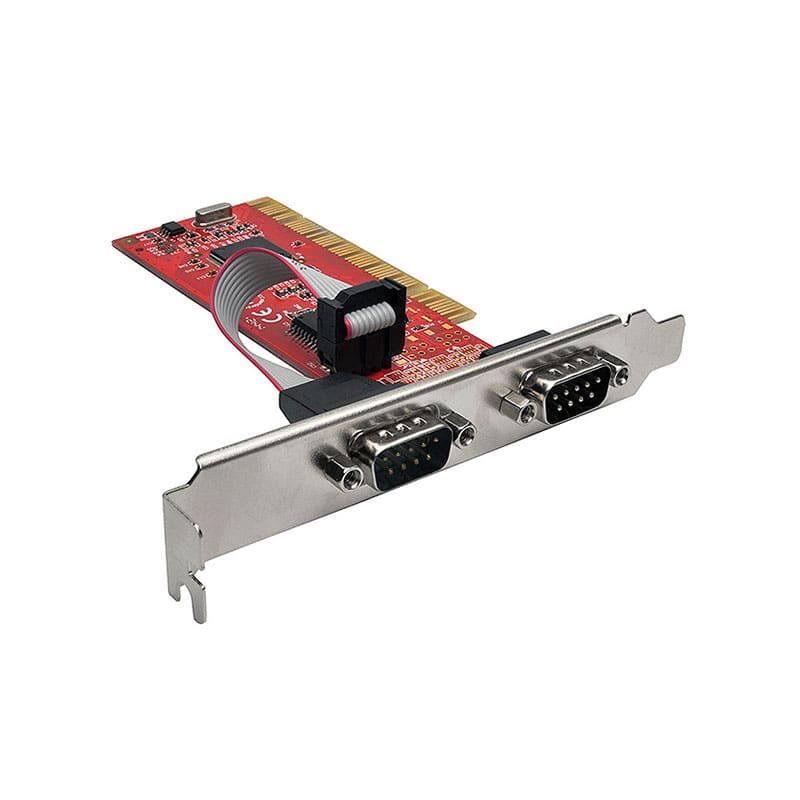

PCI-D9-02 Tripp Lite 2-Port Serial Adapter Card DB9 RS232 PCI Full Profile
PCI-D9-02 Overview
The PCI-D9-02 2-Port DB9 Serial PCI Card adds two DB9 serial ports to your computer or server. By adding the PCI-D9-02 to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer.
$23.00
Shipping calculated at checkout.
PCI-D9-02 Technical Specifications
Tripp Lite 2-Port Serial Adapter Card DB9 RS232 PCI Full Profile
| Brand | Tripp Lite |
|---|---|
| Product Line | Tripp Lite |
| Model | 2-Port DB9 RS232 PCI Serial Adapter Card Full Profile |
| Manufacturer | Tripp Lite |
Network & Communication
| Bus Voltage | Universal (3.3 V & 5.0 V) |
|---|---|
| Connectivity Technology | Wired |
| Data Link Protocols | RS-232 |
| Data Transfer Rate | 115.2 Kbps |
| Features | 16550 UART support |
| Form Factor | Plug-in card |
| Host Interface | PCI-X, PCI Specification Revision, PCI 2.3 |
| Product Type | Serial adapter |
Connectivity
| Interface Provided | 2 x RS-232 – 9 pin D-Sub (DB-9) |
|---|---|
| Port Quantity | 2 |
| Network & Adapter Ports | RS-232 |
Software
| Software Type | Driver |
|---|
Technical Information
| Operating System Required | Linux, Microsoft Windows |
|---|
Product Information
| Packaged Quantity | 1 |
|---|
Physical Characteristics
| Color | Red |
|---|---|
| Color Category | Red, Silver |
Certifications & Listings
| Compliant Standards | RoHS |
|---|
